Présentation

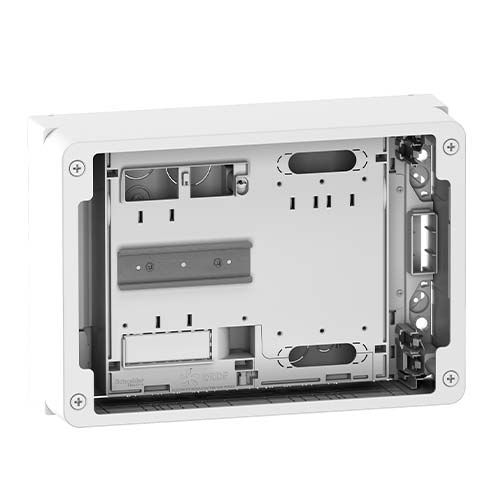

SCHNEIDER Resi9 Panneau de contrôle pour compteur Linky et CBE avec habillage 18 modules - R9H18416
Panneau de contrôle qui s'installe sur une goulotte GTL 18 modules.
- panneau de contrôle pouvant accueillir un compteur d'énergie CBE ou LINKY
- compatible avec les produits des gammes Opale et Resi9, dont la porte pour tableau électrique réf. R9H18421
- permet d'accueillir un disjoncteur d'abonné (quelle que soit sa marque)
Fiche e-catalogue panneau de contrôle Schneider
- Norme CE
- Garantie 2 ans
Descriptif
- Gammes compatibles : Opale et Resi9
- Courant nominal : 90 A
- Nombre de phase réseau : monophasé
- Fixation : sur goulotte GTL
- Pas de 9 mm : 36
- Nombre de modules de 18 mm : 18
- Dimensions : (LxHxP) : 357 x 250 x 108 mm
- Couleur : blanc
- Indice de protection : IP40
- Norme ERDF CPT-M&S-Spe-10015A
- Classe d'isolation électrique : II
