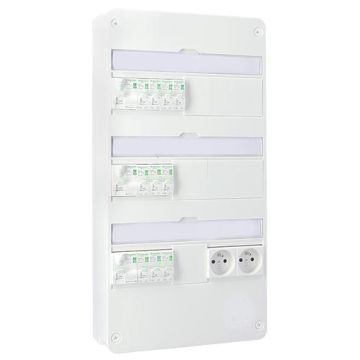

SCHNEIDER Resi9 XE Tableau électrique pré-équipé auto 3 rangées 3ID 40A 10 disjoncteurs
- Réf. 123Elec : SCHF822834R9-F
- Réf. Fabricant : SCHNEIDER TAB PR?EQ
-
SCHNEIDER Resi9 Goulotte GTL 13 modules 2 compartiments clipsable - R9HKT13
- Réf. 123Elec : SCHR9HKT13
- Réf. Fabricant : R9HKT13
Présentation

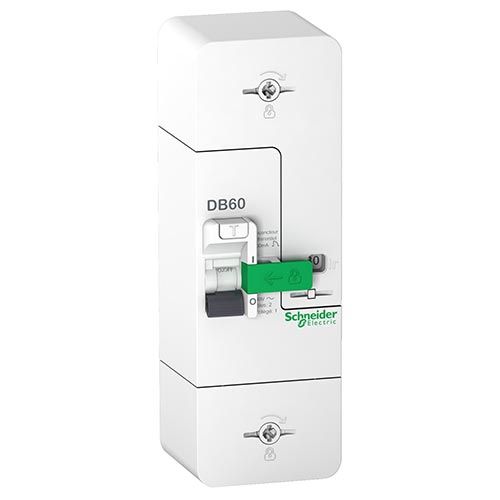

SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 60A 500mA différentiel instantané - R9FT660
Le disjoncteur d'abonné monophasé 60A 500mA différentiel instantané de Schneider assure la protection des personnes et des biens en garantissant une déconnexion rapide à la tête de l'installation.
- Ce disjoncteur d'abonné instantané convient à un courant assigné d'emploi de 30 à 60A. Au-delà, il va se déclencher automatiquement.
- Ce disjoncteur d'abonné Schneider autorise le raccordement par bornes de câbles en cuivre jusqu'à 35mm².
- La couleur bleue de cette protection électrique simplifie la repérage du raccordement du neutre en un coup d'oeil.
Fiche e-catalogue disjoncteur d'abonné Schneider
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
Données techniques de ce disjoncteur Schneider Resi9 :
- Gamme du produit : Resi9
- Type de produit : disjoncteur différentiel
- Pôle : 1P+N
- Courant nominal max : 60A
- Paramétrage : 60A fixe 12kVA
- Normes : NF C 62-411
- Classe d'isolation électrique : classe II
- [Ue] tension assignée d'emploi : 250V CA 50Hz se conformer à NF C 62-411
- Technologie de déclenchement sur courant résiduel : indépendant de la tension
- Type de déclencheur : thermique-magnétique
- Pouvoir de coupure: 2,4kA
- Sensibilité du différentiel : 500 mA.
- Type de protection différentielle : instantané.
- Classe de protection différentielle : type AC
- Dimensions :
- Hauteur : 209mm
- Largeur : 71mm
- Profondeur : 73mm
- Couple de serrage :
- 4 N.m bornes d'alimentation
- 1 N.m réglage
- Cadenassable sur position OFF avec cadenas de Ø 6mm
- Degré de protection IP : IP40 (face avant)
- Support de montage : Platine de montage
Découvrez le disjoncteur d'abonné Schneider Resi9 en vidéo :
Caractéristiques e-catalogue Schneider :
- Fiche technique disjoncteur abonné réf. R9FT660
- Notice d'installation disjoncteur d'abonné Schneider Electric
- Profil environnemental Schneider Resi9 DB60
Adapté à tous les types de chantiers, le matériel électrique Schneider est disponible sur notre 123elec.
