Présentation

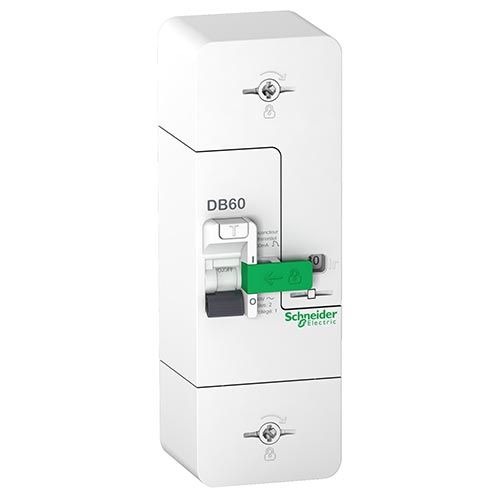

SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 15/30/45A 500mA différentiel instantané - R9FT645
Le disjoncteur d'abonné Schneider monophasé avec déclenchement instantané différentiel garantit la protection des personnes et des biens, tout en assurant la coupure de l'alimentation en tête d'installation.
- Ce disjoncteur différentiel instantané est adapté à un courant assigné d'emploi de 15 à 45A.
- Les câbles en cuivre jusqu'à 35mm² peuvent être raccordés par bornes grâce à ce disjoncteur d'abonné.
- Le repérage du raccordement du neutre est facilité par la couleur bleue distinctive de ce disjoncteur Schneider.
Fiche e-catalogue disjoncteur abonné monophasé Schneider
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
Caractéristiques techniques de ce disjoncteur d'abonné différentiel :
- Gamme du produit : Resi9
- Type de produit : disjoncteur différentiel
- Pôle : 1P+N
- Courant nominal max : 45A
- Paramétrage :
- 45A - 9kVA
- 30A - 6kVA
- 15A - 3kVA
- Normes : NF C 62-411
- Classe d'isolation électrique : classe II
- [Ue] tension assignée d'emploi : 250V CA 50Hz se conformer à NF C 62-411
- Technologie de déclenchement sur courant résiduel : indépendant de la tension
- Type de déclencheur : thermique-magnétique
- Pouvoir de coupure: 2kA
- Classe de protection différentielle : type AC
- Dimensions :
- Hauteur : 209mm
- Largeur : 71mm
- Profondeur : 73mm
- Couple de serrage :
- 4 N.m bornes d'alimentation
- 1 N.m réglage
- Cadenassable sur position OFF avec cadenas de Ø 6mm
- Degré de protection IP : IP40 (face avant)
- Support de montage : Platine de montage
Plus d'informations sur le disjoncteur d'abonné Resi9 en vidéo :
Caractéristiques e-catalogue Schneider :
- Fiche technique disjoncteur d'abonné réf. R9FT645
- Notice d'installation disjoncteur d'abonné Schneider Electric
- Profil environnemental Schneider Resi9 DB60
Pour vos chantiers de rénovations électriques, optez pour le matériel électrique Schneider.
Avis clients
Moyenne des notes : 5/5 Avis classés du plus récent au plus ancien
-
Produit répond à mes attente - simple a mettre en place
Instruction claire
