Présentation

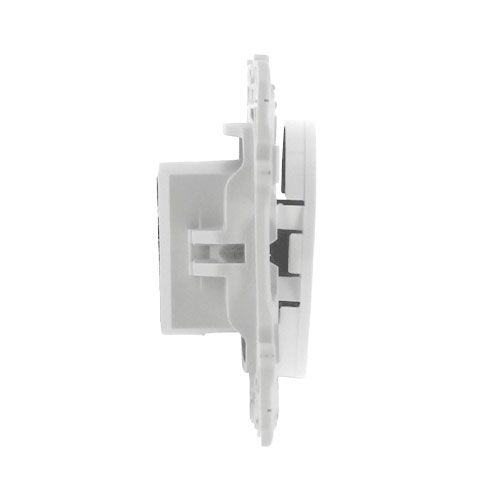

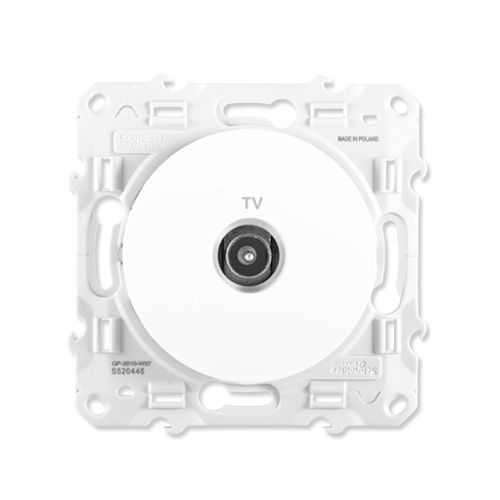

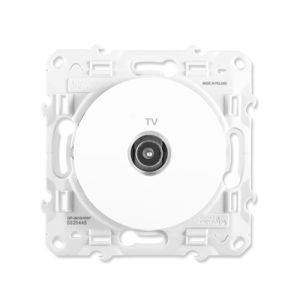

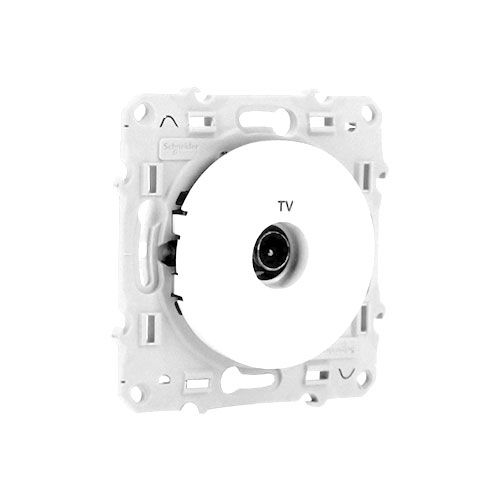

SCHNEIDER Odace Prise TV blanc - S520445
Ce mécanisme Schneider Odace pour prise antenne TV est livré avec un couvercle de protection peinture.
- Cela permet de ne pas risquer d'endommager l'appareillage lors des travaux dans l'habitat
- La norme NF C 15-100 impose, pour tous réseaux de communication n'assurant pas la fonction de distribution de la télé, la présence d'au minimum une prise antenne TV par logement
- Norme CE
- Garantie 2 ans
Descriptif
- Gamme de produit : Odace
- Type de produit : prise TV
- Présentation du produit : mécanisme avec support de fixation
- Type de prise télévision : individuel
- Type d'emballage : capot de protection
- Montage de l'appareil : encastré
- Inclus : capot de protection souple et translucide
- Connecteur TV : mâle CEI 9,52mm
- Affaiblissement sur un trajet : - 1,5 dB TV signal 5...1800 MHz - 2,5 dB TV signal1800...2150 MHz
- Nombre d'entrées : 1
- Mode de fixation : par vis
- Nuance de la couleur : blanc (RAL 9003)
- Finition de la surface : brillant
- Raccordement : borne à vis
- Longueur de dénudage des fils : 8mm
- Type de câble : coaxial
- Diamètre extérieur du câble : 7mm
- Matière : - Plaque centrale : plastique anti-UV - Plaque de finition : PBT (polybutylene terephthalate) GF30 - Enveloppe : alliage de zinc
- Dimensions : - Hauteur : 71mm - Largeur : 71mm - Profondeur : 34,1mm - Profondeur d'encastrement : 18,1mm
- Poids : 0,041kg
- Tenue aux chocs : IK04
- Degrès de protection : IP21D
Vidéo de présentation de la gamme Schneider Odace :
Caractéristiques e-catalogue Schneider :Fiche technique Schneider réf. S520445La marque Schneider propose une variété de matériel électrique répondant aux exigences des normes en vigueur et assurant une sécurité optimale.Retrouvez l'ensemble des appareillages Odace.Dossier thématique : Lire le dossier thématique sur la norme et le réseau multimédia
