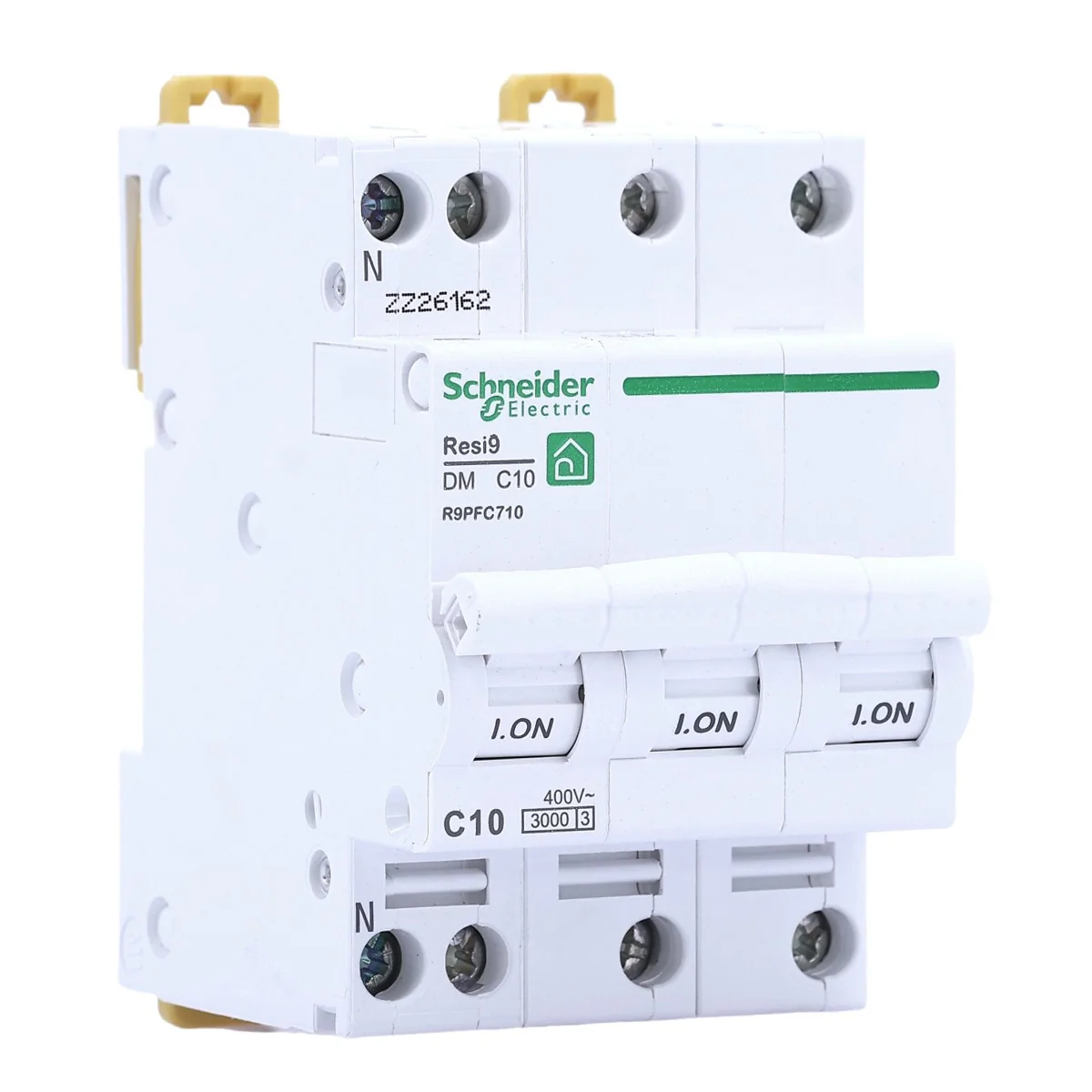

SCHNEIDER Resi9 XP Disjoncteur tétrapolaire 10A courbe C 3kA 400V - R9PFC710
- Réf. 123Elec : SCHR9PFC710
- Réf. Fabricant : R9PFC710
-

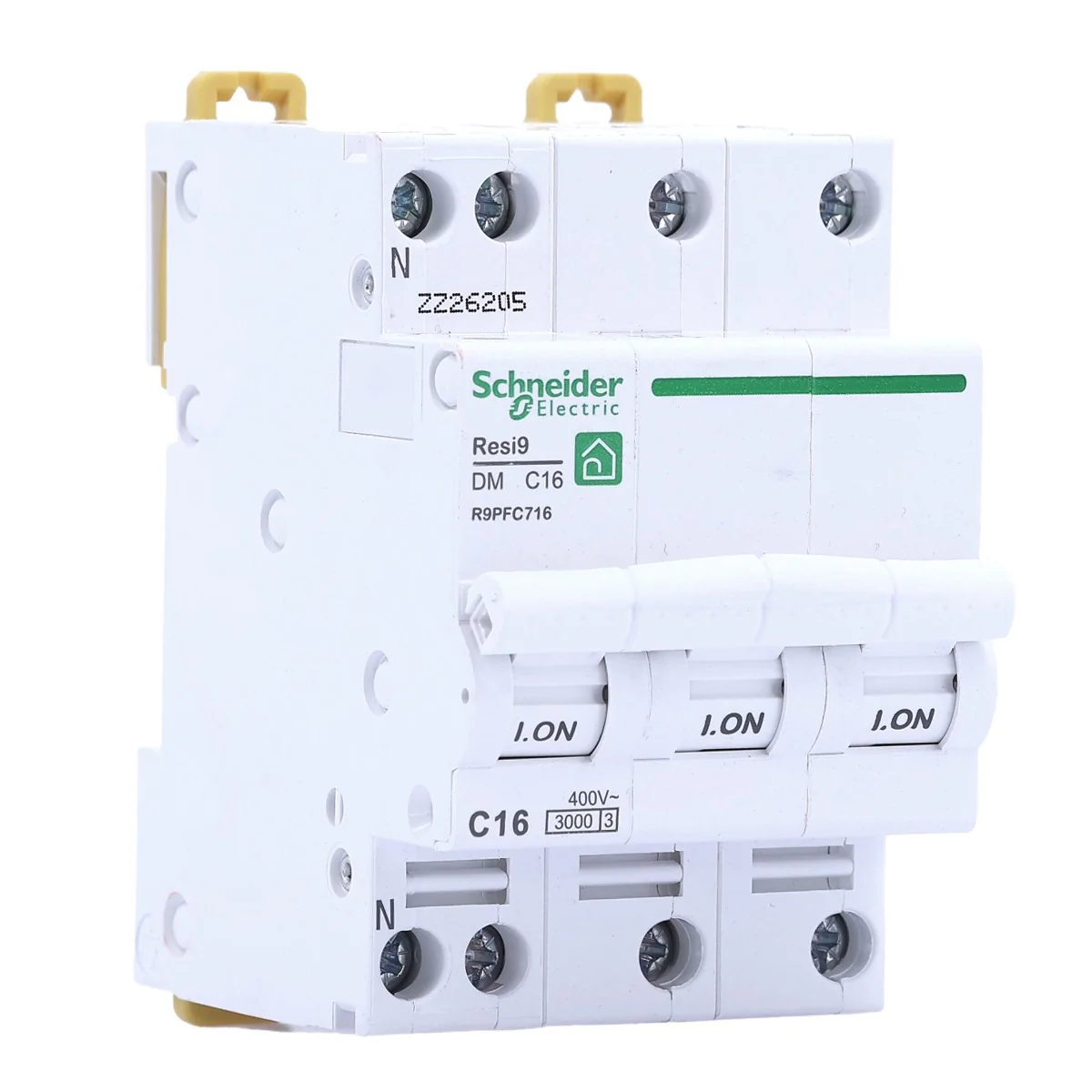

SCHNEIDER Resi9 XP Disjoncteur tétrapolaire 16A courbe C 3kA 400V - R9PFC716
- Réf. 123Elec : SCHR9PFC716
- Réf. Fabricant : R9PFC716
-
SCHNEIDER Resi9 XP Interrupteur différentiel tétrapolaire 40A 30mA type A 4 modules 400V - R9PRA440
- Réf. 123Elec : SCHR9PRA440
- Réf. Fabricant : R9PRA440
-
SCHNEIDER Resi9 XP Interrupteur différentiel tétrapolaire 40A 30mA type AC 4 modules 400V - R9PRC440
- Réf. 123Elec : SCHR9PRC440
- Réf. Fabricant : R9PRC440
Présentation

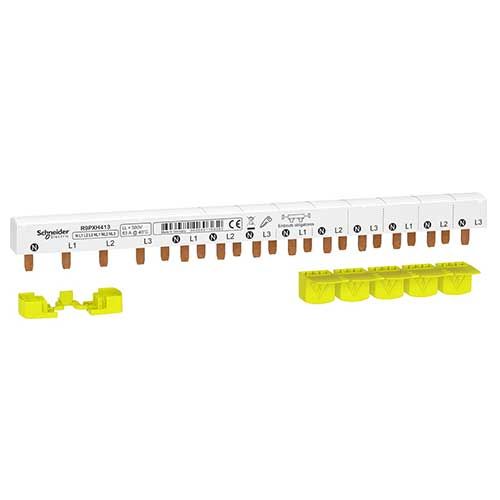

SCHNEIDER Resi9 Peigne d'alimentation électrique horizontal tétrapolaire 13 modules - R9PXH413
Le peigne d'alimentation Schneider Resi9 vous permet de relier les disjoncteurs et autres appareillages modulaires d'une rangée à l'interrupteur différentiel tétrapolaire.
- Ce peigne d'alimentation tétrapolaire permet de raccorder sur une même ligne des produits Schneider Rési9 à vis Uni + Neutre, tripolaires et tétrapolaires.
- Le peigne Schneider peut être coupé et ainsi s'adapter à la largeur de votre rangée dans votre tableau électrique.
- Ce peigne d'alimentation électrique est livré avec des cache-dents de 5 modules pour éviter tout risque de contact avec une partie sous tension.
Fiche e-catalogue peigne d'alimentation Schneider
- Norme CE
- Garantie 2 ans
Descriptif
- Type de produit : peigne de raccordement
- Gamme de produit : Resi9
- Présentation du produit : découpable
- Couleur : blanc (RAL 9003)
- Type de connecteur : dent
- Description des pôles : 3P + N
- Nombres de voies : - Interrupteur principal : 1 voie N + 3P - Départ : 9 voies N + P + auxiliaire
- Longueur modules de 18mm : 13
- Courant assigné d'emploi : 63A
- Tension assigné d'emploi : - 230V (Ph/N) - 400V (Ph/Ph)
- Tension d'isolement : 500V
- Pas de 9mm : 26
- Equipement fournis : 5 couverture de dent
- Certification du produit : CE
- Dimensions : - Hauteur : 21mm - Largeur : 235mm - Profondeur : 24,5mm
- Mode d'installation : horizontale
- Emplacement de montage : haut sur borne du type à cage
