- SCHNEIDER Resi9 XP Interrupteur différentiel tétrapolaire 40A 30mA type AC 4 modules 400V - R9PRC440

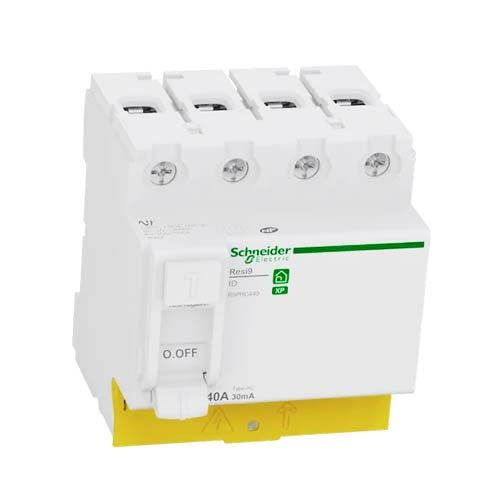

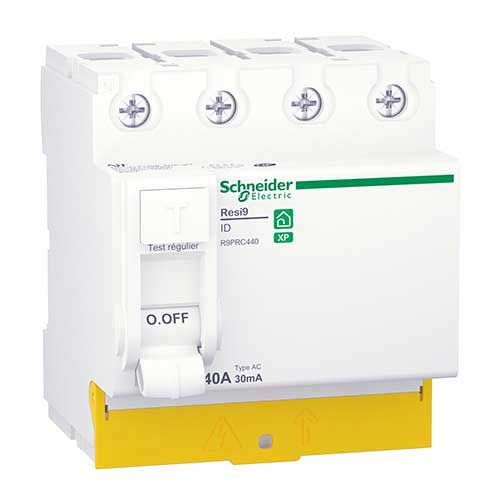

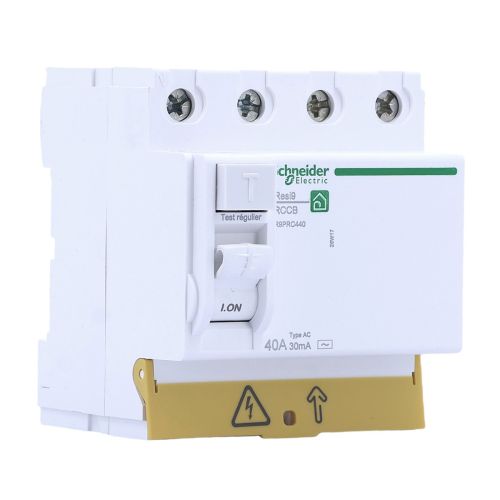

SCHNEIDER Resi9 XP Interrupteur différentiel tétrapolaire 40A 30mA type AC 4 modules 400V - R9PRC440
- Réf. 123Elec : SCHR9PRC440
- Réf. Fabricant : R9PRC440
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
SCHNEIDER Resi9 Tableau électrique nu 4 rangées 18 modules - R9H18404
- Réf. 123Elec : SCHR9H18404
- Réf. Fabricant : R9H18404
-
SCHNEIDER Resi9 XP Disjoncteur tétrapolaire 16A courbe C 3kA 400V - R9PFC716
- Réf. 123Elec : SCHR9PFC716
- Réf. Fabricant : R9PFC716
-
SCHNEIDER Resi9 XP Disjoncteur tétrapolaire 20A courbe C 3kA 400V - R9PFC720
- Réf. 123Elec : SCHR9PFC720
- Réf. Fabricant : R9PFC720
-
SCHNEIDER Resi9 Peigne d'alimentation électrique horizontal tétrapolaire 18 modules - R9PXH418
- Réf. 123Elec : SCHR9PXH418
- Réf. Fabricant : R9PXH418
Présentation
SCHNEIDER Resi9 XP Interrupteur différentiel tétrapolaire 40A 30mA type AC 4 modules 400V - R9PRC440L'interrupteur différentiel tétrapolaire Schneider Resi9 XP protège les membres de votre foyer contre les risques d'électrocution et d'électrisation.
- L'alimentation de cet interrupteur différentiel Schneider se fait par le bas et la sortie par le haut. Le raccordement est direct grâce aux peignes XP trétapolaires.
- Cet interrupteur différentiel de type AC assure une protection contre les courants résiduels à composante alternative.
- Ce type d'interrupteur différentiel est généralement utilisé pour les circuits dits classiques tels que les prises et l'éclairage.
Compatible avec les gammes de disjoncteurs et tableaux Schneider Electric hors gamme Resi9 XE
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Type de produit : interrupteur différentiel
- Gamme du produit : Resi9
- Nom du produit : Resi9 XP ID
- Couleur : blanc (RAL 9003)
- Description des pôles : 3P + N
- Position du pôle neutre : gauche
- Courant assigné : 40A
- Type de réseau : CA
- Sensibilité du différentiel : 30mA
- Temporisation : instantané
- Type : AC
- Fréquence : 50Hz
- Label : NF
- Certifications du produit : CE
- Normes : EN/CEI 61008
- Garantie : 2 ans
- Tension d'isolement : 440V
- Tension assignée de tenue aux chocs : 4kV
- Endurance mécanique : 20000 cycles
- Durée de vie électrique : 10000 cycles
- Température de fonctionnement : -5 à +40°C
- Température ambiante de stockage : -40 à +80°C
- Degré de protection IP : IP20
- Tenue aux ondes : 8/20 µs, 250A se conformer à CEI 61008
- Mode d'installation : encliquetable
- Type de commande : par maneton
- Support de montage : Rail DIN
- Dimensions : - Hauteur : 81mm - Largeur : 72mm - Profondeur : 73mm
- Mode de raccordement : - Borne du type à cage (haut ou bas) - 1 à 35mm² - rigide - Borne du type à cage (haut ou bas) - 1 à 25mm² - souple - Borne du type à cage (haut ou bas) - 1 à 25mm² - flexible avec embout
- Longueur de dénudage des fils : 15mm pour haut ou bas connexion
- Couple de serrage : 3,5 N.m haut ou bas
Vidéo de présentation des interrupteurs différentiels Schneider :
Caractéristiques e-catalogue Schneider Electric :Fiche technique réf.SCHR9PRC440Du matériel innovant et à petit prix, retrouvez toute notre sélection Schneider sur notre site 123elec.
