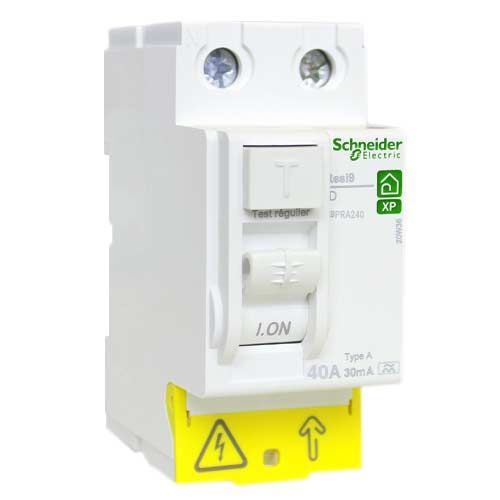

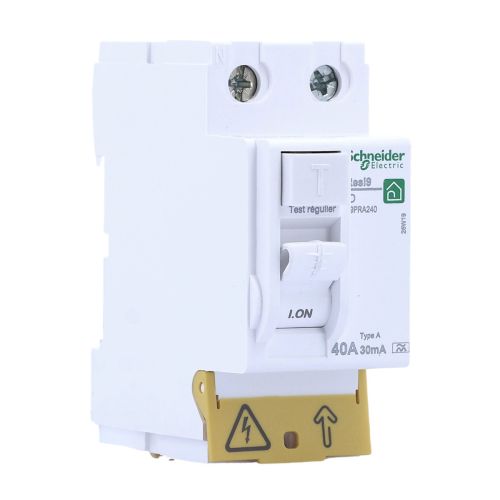

SCHNEIDER Resi9 XP Interrupteur différentiel 40A 30mA type A 230V - R9PRA240
- Réf. 123Elec : SCHR9PRA240
- Réf. Fabricant : R9PRA240
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
SCHNEIDER Resi9 XP Interrupteur différentiel 63A 30mA type A 230V - R9PRA263
- Réf. 123Elec : SCHR9PRA263
- Réf. Fabricant : R9PRA263
-
SCHNEIDER Resi9 XP Peigne vertical 2 rangées entraxe 125mm - R9PXV
- Réf. 123Elec : SCHR9PXV
- Réf. Fabricant : R9PXV
Présentation
SCHNEIDER Resi9 XP Interrupteur différentiel 40A 30mA type A 230V - R9PRA240Cet interrupteur différentiel de la gamme Resi9 est équipé de bornes de connexion à vis.
- Une étiquette est présente sur l'interrupteur différentiel afin d'avertir les personnes intervenantes que l'alimentation s'effectue par le bas.
- Il s'installe rapidement et facilement dans un tableau électrique Schneider.
- Cet inter diff 40A est idéal pour la protection des circuits du lave-linge.
Compatible avec les gammes de disjoncteurs et tableaux Schneider Electric hors gamme Resi9 XE
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Type : A
- Sensibilité : 30 mA
- Connexion : bornes à vis
- Nombre de modules : 2
- Raccordement système XP
- Raccordement : arrivée par le bas et sortie par le haut
- Section de fils acceptée : jusqu'à 35 mm²
- Tension : 230V
- Degré de protection IP : IP20
- Durée de vie électrique : 2000 cycles
- Support de montage: Rail DIN
- Signalisation locale : Indication ON/OFF
- Cet interrupteur différentiel a une largeur de 2 modules
Vidéo de présentation des interrupteurs différentiels Schneider :
Caractéristiques e-catalogue Schneider :Schneider Resi9 Réf. R9PRA240Choisissez le matériel électrique Schneider dont vous avez besoin parmi une offre diversifiée.
Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
Kit STARTER de mise à la terre 1 piquet 1M + liaison jusqu'au tableau électrique
- Réf. 123Elec : PHNPACKTERRE01
- Réf. Fabricant : PACKTERRE01
40,70 € TTC33,92 € HT -
8,50 € TTC7,08 € HT
-
Nouveauté
SCHNEIDER Easy UPS Onduleur 4 prises 1 ph line-interactive 230V 800VA 450W - BVS800I-GR
- Réf. 123Elec : SCHBVS800I-GR
- Réf. Fabricant : BVS800I-GR
95,99 € TTC79,99 € HT -
SCHNEIDER Mureva Presse étoupe M16 IP68 - ISM71502
- Réf. 123Elec : SCHISM71502
- Réf. Fabricant : ISM71502
1,20 € TTC1,00 € HT -
SCHNEIDER Resi9 XE Télérupteur combiné 16A 1F/NO auto monophasé - R9ECL616
- Réf. 123Elec : SCHR9ECL616
- Réf. Fabricant : R9ECL616
36,30 € TTC30,25 € HT -
SCHNEIDER Resi9 XP Télérupteur 16A 1NO monophasé - R9PCL116
- Réf. 123Elec : SCHR9PCL116
- Réf. Fabricant : R9PCL116
21,70 € TTC18,08 € HT -
SCHNEIDER Resi9 XP Prise modulaire 2P+T 16A 2,5 modules - R9PCS616
- Réf. 123Elec : SCHR9PCS616
- Réf. Fabricant : R9PCS616
7,70 € TTC6,42 € HT -
SCHNEIDER Resi9 XP Contacteur Jour/Nuit 20A 2NO monophasé - R9PCTH20
- Réf. 123Elec : SCHR9PCTH20
- Réf. Fabricant : R9PCTH20
49,50 € TTC41,25 € HT -
SCHNEIDER Resi9 XP Disjoncteur 10A Ph+N courbe C 3kA 230V - R9PFC610
- Réf. 123Elec : SCHR9PFC610
- Réf. Fabricant : R9PFC610
9,70 € TTC8,08 € HT -
SCHNEIDER Resi9 XP Disjoncteur 16A Ph+N courbe C 3kA 230V - R9PFC616
- Réf. 123Elec : SCHR9PFC616
- Réf. Fabricant : R9PFC616
9,70 € TTC8,08 € HT -
SCHNEIDER Resi9 XP Disjoncteur 20A Ph+N courbe C 3kA 230V - R9PFC620
- Réf. 123Elec : SCHR9PFC620
- Réf. Fabricant : R9PFC620
9,70 € TTC8,08 € HT -
SCHNEIDER Resi9 XP Disjoncteur 32A Ph+N courbe C 3kA 230V - R9PFC632
- Réf. 123Elec : SCHR9PFC632
- Réf. Fabricant : R9PFC632
12,50 € TTC10,42 € HT -
SCHNEIDER Resi9 XP Disjoncteur 25A Ph+N courbe D 3kA 230V - R9PFD625
- Réf. 123Elec : SCHR9PFD625
- Réf. Fabricant : R9PFD625
21,90 € TTC18,25 € HT -
SCHNEIDER Resi9 XP Interrupteur différentiel 63A 30mA type A 230V - R9PRA263
- Réf. 123Elec : SCHR9PRA263
- Réf. Fabricant : R9PRA263
89,20 € TTC74,33 € HT -
SCHNEIDER Resi9 XP Interrupteur différentiel 40A 30mA type AC 230V - R9PRC240
- Réf. 123Elec : SCHR9PRC240
- Réf. Fabricant : R9PRC240
41,90 € TTC34,92 € HT -
SCHNEIDER Resi9 XP Interrupteur différentiel 63A 30mA type AC 230V - R9PRC263
- Réf. 123Elec : SCHR9PRC263
- Réf. Fabricant : R9PRC263
74,40 € TTC62,00 € HT -
SCHNEIDER Resi9 XP Peigne d'alimentation électrique horizontal Phase Neutre 13 modules - R9PXH213
- Réf. 123Elec : SCHR9PXH213
- Réf. Fabricant : R9PXH213
6,50 € TTC5,42 € HT -
SCHNEIDER Resi9 XP Peigne vertical 2 rangées entraxe 125mm - R9PXV
- Réf. 123Elec : SCHR9PXV
- Réf. Fabricant : R9PXV
7,99 € TTC6,66 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante blanc - S520052
- Réf. 123Elec : SCHS520052
- Réf. Fabricant : S520052
2,95 € TTC2,46 € HT -
YOKIS Power Télécommande murale 1 touche 45x45 - TLM1T45P
- Réf. 123Elec : YOKTLM1T45P
- Réf. Fabricant : TLM1T45P
45,95 € TTC38,29 € HT
Caractéristiques
Référence fabricant | R9PRA240 |
---|---|
Gencode EAN | 3606481102669 |
Marque | SCHNEIDER |
Gamme du produit | Schneider Resi9 XP à vis |
Fonction du module | Interrupteur différentiel |
Intensité | 40A |
Sensibilité différentiel | 30mA |
Type de différentiel | Type A |
Bornes auto | Non |
Type de connexion | A vis |
Nombre de pôles | Monophasé 2P |
Tension | 230V |
Emprise (en nombre de modules) | 2 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
