SCHNEIDER Resi9 Bloc de commande 13 modules - R9H13206
- Réf. 123Elec : SCHR9H13206
- Réf. Fabricant : R9H13206
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
17,90 € TTCDEEE inclue
de 0,10 €14,92 € HTDEEE inclue
de 0,08 € -
SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 15/30/45A 500mA différentiel sélectif - R9FS645
- Réf. 123Elec : SCHR9FS645
- Réf. Fabricant : R9FS645
-
SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 15/30/45A 500mA différentiel instantané - R9FT645
- Réf. 123Elec : SCHR9FT645
- Réf. Fabricant : R9FT645
-
SCHNEIDER Resi9 Habillage pour panneau de contrôle 13 modules - R9H13418
- Réf. 123Elec : SCHR9H13418
- Réf. Fabricant : R
Présentation

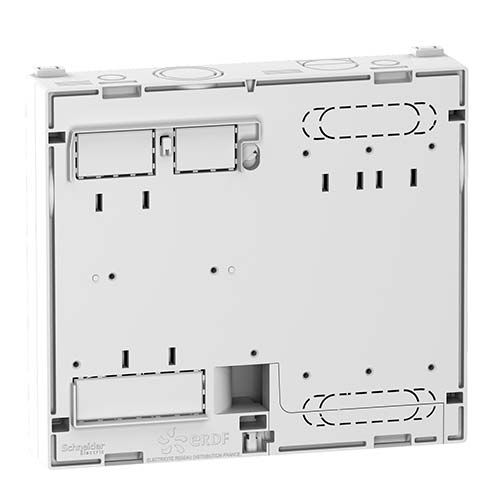

SCHNEIDER Resi9 Bloc de commande 13 modulesBloc de commande à installer au dessus du tableau électrique, au sein de la gaine technique de logement.
- ce bloc de commande s'intègre parfaitement dans les goulottes GTL 13 modules
- il supporte le disjoncteur d'abonné et le compteur électrique
- compatible avec les gammes Resi9 et Opale
- Norme CE
- Garantie 2 ans
Descriptif
- Compatibilité : gammes Opale et Resi9
- Courant nominal : 90 A
- Fixation : sur goulotte GTL
- Pas de 9 mm : 26
- Nombre de modules de 18 mm : 13
- Dimensions : (LxHxP) : 250 mm x 225 mm x 45 mm
- Couleur : blanc
- Degré de protection : IP40
- Normes ERDF CPT-M&S-Spe-10015A
- Classe d'isolation électrique : II
Avis clients
Moyenne des notes : 4.5/5 Avis classés du plus récent au plus ancien
-
Achetée pour déplacement de linky et disjoncteur principal. Très facile à monter sur la GTL Resi 9.
-
Excellente qualité comme tous les trucs Schneider.
-
produit correspondant bien a la description faite sur le site
livraison rapide
je recommande
Questions & Réponses
Ces produits peuvent vous intéresser
-
Câble électrique R2V 3G16 MIGUELEZ - Prix au métre
- Réf. 123Elec : MIG810103101609203
- Réf. Fabricant : 810103101609203
8,29 € TTC6,91 € HT -
Câble électrique R02V 3G2.5² B/M/VJ NEXANS - Couronne de 25m
- Réf. 123Elec : NEX10130806
- Réf. Fabricant : 10130806
39,95 € TTC33,29 € HT -
Gaine électrique ICTA préfilée 3G1.5 R/B/VJ D16 PROFIFLEX - Couronne de 100m
- Réf. 123Elec : PROAPF1U15BRT
- Réf. Fabricant : APF1U15BRT
89,90 € TTC74,92 € HT -
Gaine électrique ICTA préfilée 3G2.5 R/B/VJ D20 PROFIFLEX - Couronne de 100m
- Réf. 123Elec : PROAPF2U25BRT
- Réf. Fabricant : APF2U25BRT
129,00 € TTC107,50 € HT -
Nouveauté
SCHNEIDER Easy UPS Onduleur 4 prises 1 ph line-interactive 230V 800VA 450W - BVS800I-GR
- Réf. 123Elec : SCHBVS800I-GR
- Réf. Fabricant : BVS800I-GR
95,99 € TTC79,99 € HT -
SCHNEIDER Wiser Micro-module radio pour éclairage 16A Zigbee encastré- CCT5011-0002W
- Réf. 123Elec : SCHCCT5011-0002W
- Réf. Fabricant : CCT5011-0002W
31,99 € TTC26,66 € HT -
SCHNEIDER Multifix Air Point de centre DCL D67 P50 - IMT35022
- Réf. 123Elec : SCHIMT35022
- Réf. Fabricant : IMT35022
6,50 € TTC5,42 € HT -
SCHNEIDER Multifix Air Boîte encastrement triple étanche à l'air P40 E71 - IMT35031
- Réf. 123Elec : SCHIMT35031
- Réf. Fabricant : IMT35031
4,90 € TTC4,08 € HT -
SCHNEIDER Multifix Air Boîte encastrement simple étanche à l'air D67 P47- IMT35032
- Réf. 123Elec : SCHIMT35032
- Réf. Fabricant : IMT35032
0,95 € TTC0,79 € HT -
SCHNEIDER Resi9 XE Double Prise modulaire 2P+T combinée 16A auto 6 modules - R9ECS616
- Réf. 123Elec : SCHR9ECS616
- Réf. Fabricant : R9ECS616
28,50 € TTC23,75 € HT -
SCHNEIDER Resi9 XE Contacteur Jour / Nuit combiné 20A 2F/NO auto monophasé - R9ECT620
- Réf. 123Elec : SCHR9ECT620
- Réf. Fabricant : R9ECT620
63,50 € TTC52,92 € HT -
SCHNEIDER Resi9 XE Disjoncteur 16A auto Ph+N courbe D 3kA 230V - R9EFD616
- Réf. 123Elec : SCHR9EFD616
- Réf. Fabricant : R9EFD616
18,25 € TTC15,21 € HT -
SCHNEIDER Resi9 XE Disjoncteur 32A auto Ph+N courbe D 3kA 230V - R9EFD632
- Réf. 123Elec : SCHR9EFD632
- Réf. Fabricant : R9EFD632
25,60 € TTC21,33 € HT -
SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 60A 500mA non différentiel - R9FN660
- Réf. 123Elec : SCHR9FN660
- Réf. Fabricant : R9FN660
104,90 € TTC87,42 € HT -
SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 60A 500mA différentiel instantané - R9FT660
- Réf. 123Elec : SCHR9FT660
- Réf. Fabricant : R9FT660
99,95 € TTC83,29 € HT -
SCHNEIDER Resi9 bac d'encastrement 2 rangées 13 modules 477 mm - R9H13281
- Réf. 123Elec : SCHR9H13281
- Réf. Fabricant : R9H13281
48,50 € TTC40,42 € HT -
SCHNEIDER Resi9 porte pour bac d'encastrement 2 rangées 13 modules - R9H13311
- Réf. 123Elec : SCHR9H13311
- Réf. Fabricant : R9H13311
58,50 € TTC48,75 € HT -
SCHNEIDER Kit de fixation pour coffret Opale et Resi9 - R9H99001
- Réf. 123Elec : SCHR9H99001
- Réf. Fabricant : R9H99001
6,95 € TTC5,79 € HT -
Wago TOPJOB®S Borne de passage à levier 2 fils 6mm² gris - 2106-5201
- Réf. 123Elec : WAG2106-5201
- Réf. Fabricant : 2106-5201
2,89 € TTC2,41 € HT -
Wago TOPJOB®S Borne de passage à levier 2 fils 6mm² bleu- 2106-5204
- Réf. 123Elec : WAG2106-5204
- Réf. Fabricant : 2106-5204
2,89 € TTC2,41 € HT
Caractéristiques
Référence fabricant | R9H13206 |
---|---|
Gencode EAN | 3606480927874 |
Marque | SCHNEIDER |
Gamme du produit | Schneider Resi9 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Non |
CE | Oui |
