SCHNEIDER Resi9 XE Télérupteur combiné 16A 1F/NO auto monophasé - R9ECL616
- Réf. 123Elec : SCHR9ECL616
- Réf. Fabricant : R9ECL616
- Paiement 100 % sécurisé
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
SCHNEIDER Resi9 XP Parafoudre monophasé autoprotégé type 2 10kA 230V - R9PLC
- Réf. 123Elec : SCHR9PLC
- Réf. Fabricant : R9PLC
-
SCHNEIDER Resi9 XE Contacteur Jour / Nuit combiné 20A 2F/NO auto monophasé - R9ECT620
- Réf. 123Elec : SCHR9ECT620
- Réf. Fabricant : R9ECT620
-
SCHNEIDER Resi9 XE Tableau électrique monté et câblé TAMC auto 3 rangées 3ID 40A 10 disjoncteurs
- Réf. 123Elec : SCHF822834R9-F
- Réf. Fabricant : SCHNEIDER TAB PR?EQ
-
SCHNEIDER Resi9 XE Tableau électrique monté et câblé TAMC auto 4 rangées 2ID 40A 2ID 63A 14 disjoncteurs
- Réf. 123Elec : SCHF822849PMR9-F
- Réf. Fabricant : SCHNEIDER TAB PR?EQ
Présentation

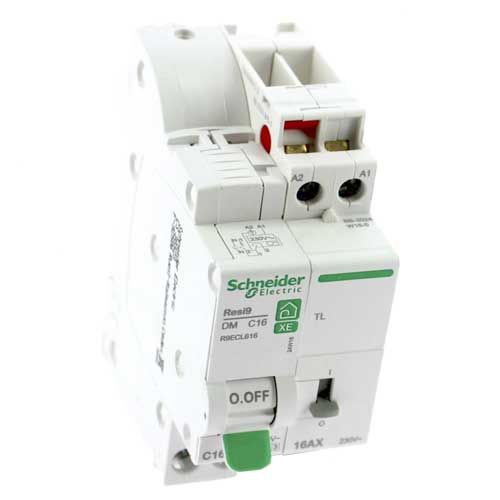

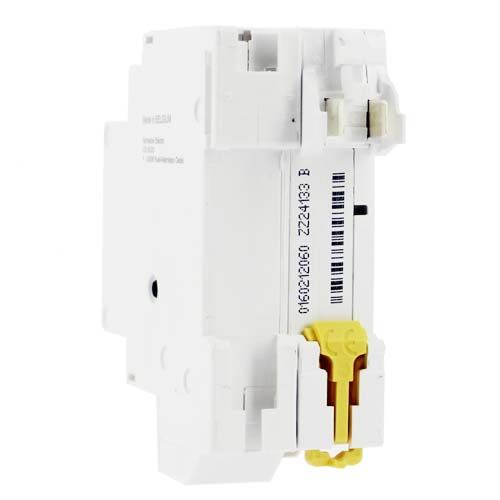

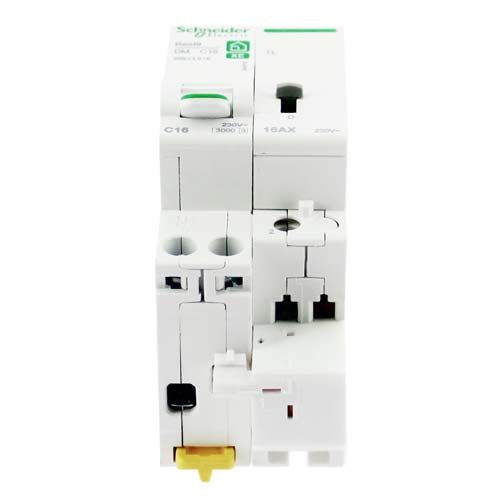

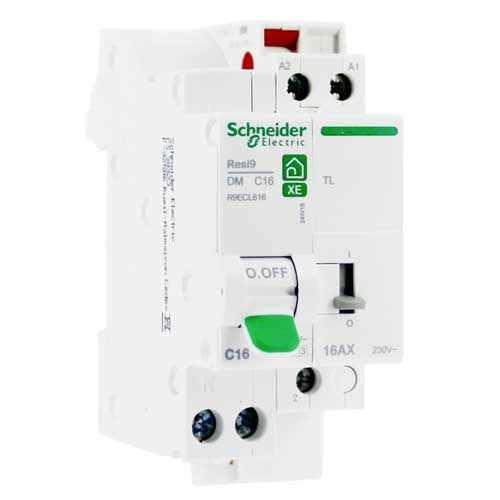

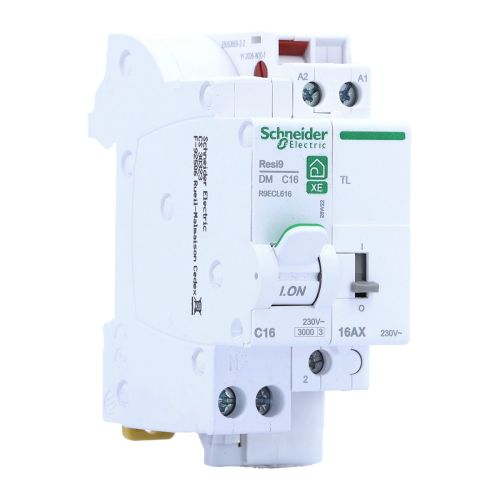

SCHNEIDER Resi9 XE Télérupteur combiné 16A 1F/NO auto monophasé - R9ECL616

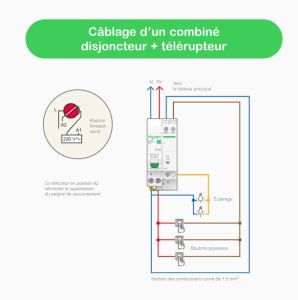

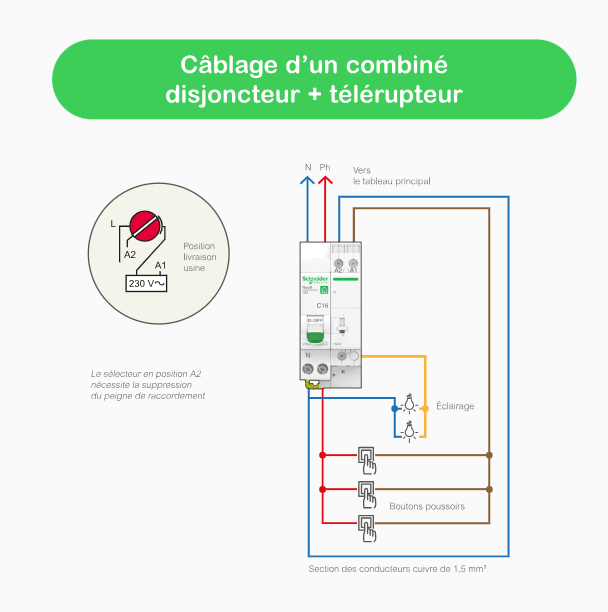

Ce télérupteur Schneider Resi9 XE associé à des boutons poussoirs, permet de contrôler et de protéger un circuit d'éclairage depuis plusieurs points de commande.
- Ce télérupteur Schneider vous offre un gain de place grâce à la commande et la protection qui sont combinées sans aucun câblage nécessaire entre les deux fonctions.
- Le système XE embrochable de chez Schneider permet une installation facile et rapide de ce module de commande.
- Cette protection électrique s'adapte sur tableau et installation peignable grâce au répartiteur d'alimentation Schneider réf. SCHR9EXHC13.
Fiche e-catalogue télérupteur Schneider
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
Caractéristiques techniques du télérupteur Schneider Resi9 XE :
- Gamme du produit : Resi9 XE
- Type de produit : télérupteur
- Type de dispositif de protection : 1 disjoncteur miniature (MCB) - 1P + N - 16 A - 230 V - C courbe - 3000 A
- Description des pôles : 1P + N
- Dimensions :
- Hauteur : 86mm
- Largeur : 36mm
- Profondeur : 87mm
- Normes :
- EN/CEI 60669-1
- EN/CEI 60669-2-2
- Courant assigné d'emploi : 16A
- Fréquence : 50Hz
- Tension assignée d'emploi : 250V CA 50Hz
- Type de commande : contrôle à distance
- Type de signal de commande : impulsion
- Fréquence de commutation : 5 commutations/minute
- Durée de l'impulsion : 50ms
- Tension circuit de commande : 230V CA 50/60Hz
- Courant démarrage alimentation : 19VA
- Mode d'installation : embrochable
- Support de montage : rail DIN
- Indice de protection : IP20
Découvrez le télérupteur combiné Schneider Resi9 en vidéo :
123elec vous présente sa gamme de télérupteurs :
Caractéristiques e-catalogue Schneider :
Fiche technique télérupteur réf. R9ECL616
Tout votre matériel électrique Schneider Electric est disponible au meilleur prix sur notre site.
Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
EUROHM XL Air'métic Boite encastrement simple étanche à l'air D67 P40 - 52061
- Réf. 123Elec : EUR52061
- Réf. Fabricant : 52061
0,38 € TTC0,32 € HT -
EUROHM XL Air'métic 100 Boites encastrement simples étanches à l'air D67 P40 + scie cloche - 52062
- Réf. 123Elec : EUR52062
- Réf. Fabricant : 52062
44,80 € TTC37,33 € HT -
IKEPE Home Connect S Coffret de communication Grade 3TV - 4RJ45 avec switch PoE
- Réf. 123Elec : IKEGA332
- Réf. Fabricant : IKEGA332
129,90 € TTC108,25 € HT -
SCHNEIDER Easy UPS Onduleur 4 prises 1 ph line-interactive 230V 800VA 450W - BVS800I-GR
- Réf. 123Elec : SCHBVS800I-GR
- Réf. Fabricant : BVS800I-GR
97,50 € TTC81,25 € HT -
SCHNEIDER Multifix Air Boîte encastrement double étanche à l'air P40 E71 - IMT35000
- Réf. 123Elec : SCHIMT35000
- Réf. Fabricant : IMT35000
3,60 € TTC3,00 € HT -
SCHNEIDER Multifix Air Point de centre DCL affleurant D67 P50 + douille E27 + fiche - IMT35021
- Réf. 123Elec : SCHIMT35021
- Réf. Fabricant : IMT35021
9,80 € TTC8,17 € HT -
SCHNEIDER Multifix Air Point de centre DCL D67 P50 + douille E27 + fiche - IMT35023
- Réf. 123Elec : SCHIMT35023
- Réf. Fabricant : IMT35023
8,90 € TTC7,42 € HT -
SCHNEIDER Multifix Air Boîte encastrement triple étanche à l'air P40 E71 - IMT35031
- Réf. 123Elec : SCHIMT35031
- Réf. Fabricant : IMT35031
4,90 € TTC4,08 € HT -
SCHNEIDER Multifix air Boîte encastrement quadruple étanche à l'air P47 E71- IMT35033
- Réf. 123Elec : SCHIMT35033
- Réf. Fabricant : IMT35033
7,20 € TTC6,00 € HT -
SCHNEIDER Resi9 XE Double Prise modulaire 2P+T combinée 16A auto 6 modules - R9ECS616
- Réf. 123Elec : SCHR9ECS616
- Réf. Fabricant : R9ECS616
28,50 € TTC23,75 € HT -
SCHNEIDER Resi9 XE Disjoncteur 25A auto Ph+N courbe C 3kA 230V - R9EFC625
- Réf. 123Elec : SCHR9EFC625
- Réf. Fabricant : R9EFC625
14,50 € TTC12,08 € HT -
SCHNEIDER Resi9 XE Peigne vertical 2 rangées entraxe 125mm - R9EXV
- Réf. 123Elec : SCHR9EXV
- Réf. Fabricant : R9EXV
9,95 € TTC8,29 € HT -
SCHNEIDER Resi9 Rehausse pour coffret électrique 4 rangées 13 modules - R9H10761
- Réf. 123Elec : SCHR9H10761
- Réf. Fabricant : R9H10761
34,40 € TTC28,67 € HT -
SCHNEIDER Resi9 Connect Coffret de communication Grade 3TV - 4RJ45 avec switch POE - R9H13401VDIXS
- Réf. 123Elec : SCHR9H13401VDIXS
- Réf. Fabricant : R9H13401VDIXS
153,90 € TTC128,25 € HT -
SCHNEIDER Resi9 XP Prise modulaire 2P+T 16A 2,5 modules - R9PCS616
- Réf. 123Elec : SCHR9PCS616
- Réf. Fabricant : R9PCS616
7,70 € TTC6,42 € HT -
SCHNEIDER Resi9 XP Parafoudre monophasé autoprotégé type 2 10kA 230V - R9PLC
- Réf. 123Elec : SCHR9PLC
- Réf. Fabricant : R9PLC
119,95 € TTC99,96 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante blanc - S520052
- Réf. 123Elec : SCHS520052
- Réf. Fabricant : S520052
2,95 € TTC2,46 € HT -
Auto
SCHNEIDER Odace Prise RJ45 catégorie 6a STP blanc - S520477
- Réf. 123Elec : SCHS520477
- Réf. Fabricant : S520477
15,10 € TTC12,58 € HT -
SCHNEIDER Odace détecteur de mouvement et de présence 3 fils toutes charges blanc - S520523
- Réf. 123Elec : SCHS520523
- Réf. Fabricant : S520523
59,90 € TTC49,92 € HT -
SCHNEIDER Odace Touch Plaque simple blanc - S520802
- Réf. 123Elec : SCHS520802
- Réf. Fabricant : S520802
1,45 € TTC1,21 € HT
Caractéristiques
Référence fabricant | R9ECL616 |
---|---|
Gencode EAN | 3606481166326 |
Gamme du produit | Schneider Resi9 XE auto |
Marque | Schneider |
Fonction du module | Télérupteur |
Intensité | 16A |
Tension | 250V |
Nombre de pôles | Monophasé 1P+N |
Emprise (en nombre de modules) | 2 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
