SCHNEIDER Ovalis Bouton poussoir VMC anthracite - S340236
- Réf. 123Elec : SCHS340236
- Réf. Fabricant : S340236
- Paiement 100 % sécurisé
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
AUTOGYRE Kit VMC simple flux autoréglable à détection d'humidité City' Air - 100920
- Réf. 123Elec : AUT100920
- Réf. Fabricant : 100920
90,03 € TTCDEEE inclue
de 0,58 €75,02 € HTDEEE inclue
de 0,48 € -
SCHNEIDER Ovalis Plaque simple anthracite - S340702
- Réf. 123Elec : SCHS340702
- Réf. Fabricant : S340702
Présentation

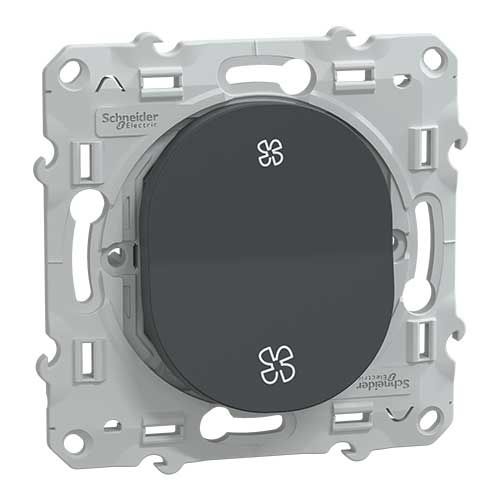

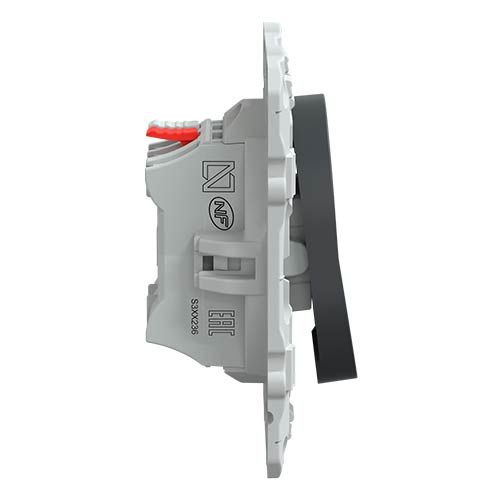

SCHNEIDER Ovalis Bouton poussoir VMC anthracite - S340236
Ce bouton poussoir Ovalis, au design unique et chic, permet de piloter votre VMC. Ce mécanisme est doté de 2 fonctions : vous pouvez choisir d'allumer votre ventilation en mode rapide ou en mode lent.
- Ce bouton poussoir VMC est pensé pour vous simplifier et sécuriser son raccordement. Il est pourvu de bornes de connexion automatiques (sans vis) et d'un mécanisme peu profond pour libérer l'espace de câblage.
- Schneider Electric vous propose un bouton poussoir VMC robuste pour une parfaite tenue et une grande résistance du produit dans le temps.
- Ajoutez une plaque de finition de la même gamme Ovalis Schneider (non fournie avec le mécanisme) et vous obtiendrez un appareillage complet.
Fiche e-catalogue bouton poussoir VMC Schneider
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Gamme de produit : Ovalis
- Type de produit : bouton-poussoir
- Type d'équipement : mécanisme avec support de fixation
- Nombre de touche : 1
- Montage : pose encastrée
- Couleur : anthracite
- Finition : mat
- Application : VMC
- Télérupteur et capot de protection inclus
- Courant assigné : 10A
- Tension : 250V
- Fréquence : 50/60Hz
- Durée de vie : 20000 cycles à ON / OFF
- Protection : - IP : IP21 - Tenue aux chocs : IK04
- Conforme à la norme EN 60669-1 et 2006/95/EEC
- Matières : - Façade : plastique anti-UV - Cadre du support : PBT (polybutylene terephthalate) - Boitier : PC (polycarbonate)
- Dimensions du mécanisme : - Hauteur : 71mm - Largeur : 71mm - Profondeur : 33,4mm - Profondeur encastrement : 18,75mm
- Pilotable à distance via l'application Wiser Home + passerelle Wifi Wiser (non inclus avec le produit !)
- Mode de fixation : par vis (possibilité d'installation par griffes avec la référence SCHS520690)
- Possibilité d'un repiquage

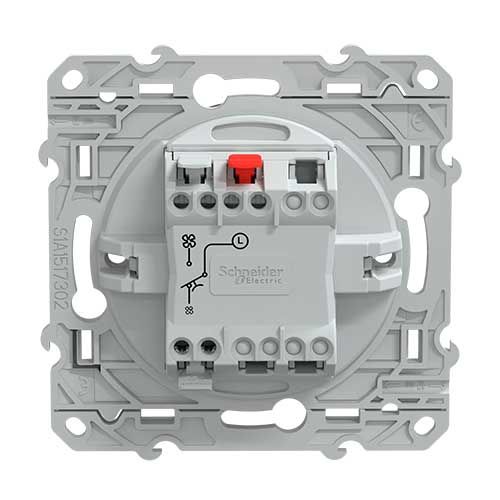

- Raccordement : bornes auto
- Capacité de serrage des bornes : - 1 x 1,5...2 x 2,5 mm² pour rigide câble(s) - 1 x 1,5...2 x 2,5 mm² pour souple câble(s) - 1 x 1,5...2 x 2,5 mm² pour multibrins câble(s)
- Longueur du dénudage : 12mm


Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
Auto
EUROHM Square Prise de courant 2P+T affleurante blanc - 60239
- Réf. 123Elec : EUR60239
- Réf. Fabricant : 60239
2,45 € TTC2,04 € HT -
Auto
EUROHM Square Prise de courant 2P+T + USB Type A blanc - 60256
- Réf. 123Elec : EUR60256
- Réf. Fabricant : 60256
17,90 € TTC14,92 € HT -
SCHNEIDER Alréa Interrupteur double va et vient saillie blanc - ALB62056P
- Réf. 123Elec : SCHALB62056P
- Réf. Fabricant : ALB62056P
9,95 € TTC8,29 € HT -
SCHNEIDER Resi9 XP Tableau électrique monté et câblé TAMC 4 rangées 2ID 40A 2ID 63A 14 disjoncteurs
- Réf. 123Elec : SCHF822841PMR9-F
- Réf. Fabricant : SCHNEIDER TAB PR?EQ
479,00 € TTC399,17 € HT -
SCHNEIDER PrismaSeT XS Tableau électrique nu en saillie 6 rangées 24 modules 125A - LVSXT624
- Réf. 123Elec : SCHLVSXT624
- Réf. Fabricant : LVSXT624
389,00 € TTC324,17 € HT -
SCHNEIDER Resi9 Peigne d'alimentation électrique horizontal tétrapolaire 13 modules - R9PXH413
- Réf. 123Elec : SCHR9PXH413
- Réf. Fabricant : R9PXH413
13,99 € TTC11,66 € HT -
Auto
SCHNEIDER Ovalis Prise de courant 2P+T affleurante anthracite - S340052
- Réf. 123Elec : SCHS340052
- Réf. Fabricant : S340052
3,85 € TTC3,21 € HT -
Auto
SCHNEIDER Ovalis Prise de courant 2P+T anthracite - S340059
- Réf. 123Elec : SCHS340059
- Réf. Fabricant : S340059
3,40 € TTC2,83 € HT -
Auto
SCHNEIDER Ovalis Bouton poussoir anthracite - S340206
- Réf. 123Elec : SCHS340206
- Réf. Fabricant : S340206
6,95 € TTC5,79 € HT -
Auto
SCHNEIDER Ovalis Interrupteur va et vient lumineux anthracite - S340263
- Réf. 123Elec : SCHS340263
- Réf. Fabricant : S340263
11,20 € TTC9,33 € HT -
8,70 € TTC7,25 € HT
-
SCHNEIDER Ovalis Prise RJ45 grade 3 catégorie 6 anthracite - S340476
- Réf. 123Elec : SCHS340476
- Réf. Fabricant : S340476
15,40 € TTC12,83 € HT -
SCHNEIDER Ovalis Sortie de cable anthracite - S340662
- Réf. 123Elec : SCHS340662
- Réf. Fabricant : S340662
3,70 € TTC3,08 € HT -
3,95 € TTC3,29 € HT
-
SCHNEIDER Ovalis Plaque simple anthracite - S340702
- Réf. 123Elec : SCHS340702
- Réf. Fabricant : S340702
1,45 € TTC1,21 € HT -
SCHNEIDER Ovalis Plaque double anthracite - S340704
- Réf. 123Elec : SCHS340704
- Réf. Fabricant : S340704
2,80 € TTC2,33 € HT -
SCHNEIDER Ovalis Plaque triple anthracite - S340706
- Réf. 123Elec : SCHS340706
- Réf. Fabricant : S340706
4,25 € TTC3,54 € HT -
SCHNEIDER Ovalis Plaque quadruple anthracite - S340708
- Réf. 123Elec : SCHS340708
- Réf. Fabricant : S340708
5,95 € TTC4,96 € HT -
SCHNEIDER Ovalis Plaque double verticale anthracite - S340724
- Réf. 123Elec : SCHS340724
- Réf. Fabricant : S340724
2,80 € TTC2,33 € HT -
SCHNEIDER Ovalis Plaque triple verticale anthracite - S340726
- Réf. 123Elec : SCHS340726
- Réf. Fabricant : S340726
4,50 € TTC3,75 € HT
Caractéristiques
Référence fabricant | S340236 |
---|---|
Gencode EAN | 3606482163027 |
Gamme du produit | Schneider Ovalis |
Marque | Schneider |
Gamme | Schneider Ovalis |
Type appareillage | Mécanisme |
Fonction appareillage | vmc |
Nombre de touche | 2 |
Couleur | Anthracite |
Matière | Plastique |
Nombre de poste | 1 poste |
Fixation | À vis |
Pose | Encastrée |
Assemblage | À composer |
Bornes automatiques | Oui |
Étanche | Non |
Indice IP - Résistance à l'eau/poussière | IP21 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
