Présentation

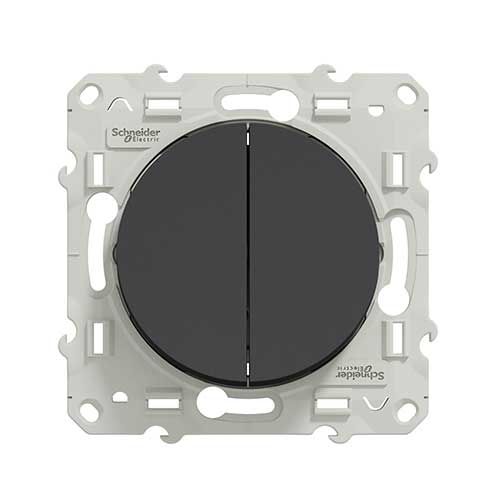

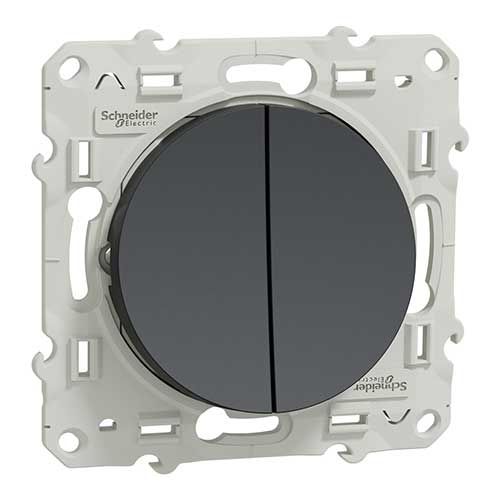

SCHNEIDER Odace Interrupteur double va et vient anthracite - S540214
Cet interrupteur double Schneider de la gamme Odace est un appareillage qualitatif et à longue durée de vie, il vous permet de commander manuellement la mise en marche/arrêt de deux circuits d'éclairage.
- Cet interrupteur va et vient Schneider s'intègre parfaitement dans tout type de logement (neuf ou rénovation), il apporte une touche de modernité à votre décoration grâce à son coloris anthracite.
- Raccordement simple, rapide et sans outils ! Ce va et vient possède des bornes de connexion autos afin de vous offrir un câblage facile et sécurisé.
- Cet appareillage Schneider est fabriqué avec une façade qui contient des matériaux robustes et résistants. Ainsi, en achetant cet interrupteur, vous choisissez un produit avec une bonne tenue aux chocs (IK04).
Fiche e-catalogue interrupteur double va et vient anthracite Schneider
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Gamme de produit : Odace
- Type de produit : interrupteur double
- Type d'équipement : mécanisme avec support de fixation
- Nombre de touche : 2
- Montage : pose encastrée
- Type d'interrupteur : unipolaire 2 voies
- Couleur : anthracite
- Inclus capot de protection souple et translucide
- Courant assigné : 10AX
- Tension : 250V
- Durée de vie : 20000 cycles à ON / OFF
- Protection : - IP : IP21 - Tenue aux chocs : IK04
- Conforme à la norme EN 60669-1 et 2006/95/EEC
- Matières : - Façade : plastique anti-UV - Cadre du support : PBT (polybutylene terephthalate) - Boitier : PC (polycarbonate)

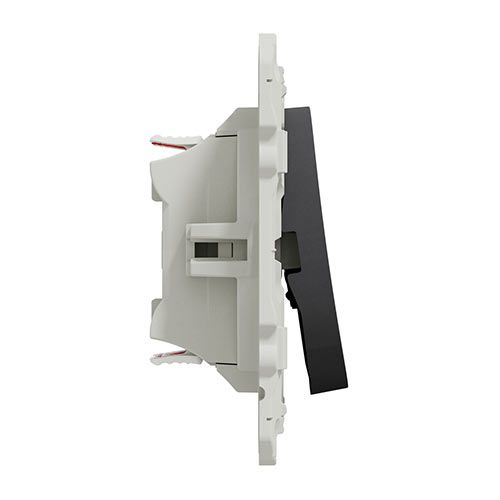

- Dimensions de la prise : - Hauteur : 71mm - Largeur : 71mm - Profondeur : 33,6mm - Profondeur encastrement : 18,75mm
- Mode de fixation : par vis (possibilité d'installation par griffes avec la référence SCHS520690)
- Possibilité d'un repiquage

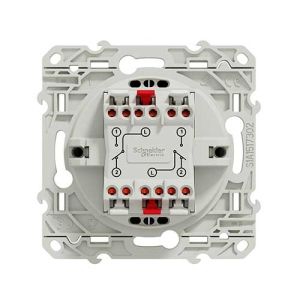

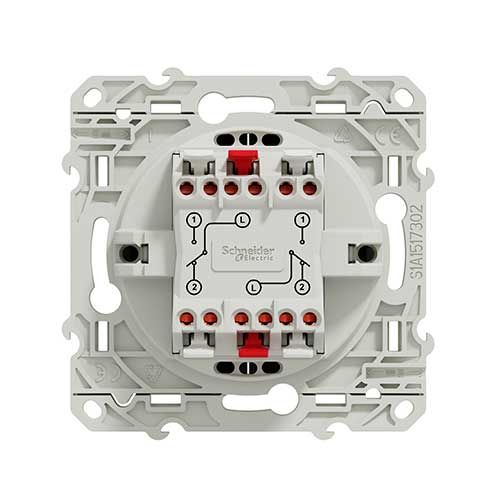

- Raccordement : bornes auto
- Capacité de serrage des bornes : - 1 x 1,5...2 x 2,5 mm² pour rigide câble(s) - 1 x 1,5...2 x 2,5 mm² pour souple câble(s) - 1 x 1,5...2 x 2,5 mm² pour multibrins câble(s)
- Longueur du dénudage : 12mm


Vidéo de présentation de la gamme Schneider Odace :
Caractéristiques e-catalogue Schneider :Schneider Odace Réf.SCHS540214Si vous souhaitez profiter de prises/interrupteurs fiables et qualitatifs, optez pour les appareillages de la marque Schneider.
Consultez notre large sélection d'interrupteurs et prises Schneider Odace.
Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
EUROHM XL Air'métic Boite encastrement simple étanche à l'air D67 P40 - 52061
- Réf. 123Elec : EUR52061
- Réf. Fabricant : 52061
0,38 € TTC0,32 € HT -
EUROHM XL Air'métic Boite encastrement double étanche à l'air P40 E71 - 52064
- Réf. 123Elec : EUR52064
- Réf. Fabricant : 52064
1,97 € TTC1,64 € HT -
Auto
SCHNEIDER Unica System+ Prise de sol 2P+T 16A ronde inox brossé - INS52103
- Réf. 123Elec : SCHINS52103
- Réf. Fabricant : INS52103
42,60 € TTC35,50 € HT -
Auto
SCHNEIDER Mureva Styl prise de courant 2P+T saillie complet IP55 gris - MUR35031
- Réf. 123Elec : SCHMUR35031
- Réf. Fabricant : MUR35031
6,55 € TTC5,46 € HT -
Auto
SCHNEIDER Mureva Styl double prise 2P+T horizontal étanche complet en saillie IP55 blanc - MUR36027
- Réf. 123Elec : SCHMUR36027
- Réf. Fabricant : MUR36027
23,99 € TTC19,99 € HT -
SCHNEIDER Resi9 XP Télérupteur 16A 1NO monophasé - R9PCL116
- Réf. 123Elec : SCHR9PCL116
- Réf. Fabricant : R9PCL116
21,70 € TTC18,08 € HT -
SCHNEIDER Resi9 XP Interrupteur différentiel 63A 30mA type A 230V - R9PRA263
- Réf. 123Elec : SCHR9PRA263
- Réf. Fabricant : R9PRA263
89,20 € TTC74,33 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante anthracite - S540052
- Réf. 123Elec : SCHS540052
- Réf. Fabricant : S540052
4,30 € TTC3,58 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T anthracite - S540059
- Réf. 123Elec : SCHS540059
- Réf. Fabricant : S540059
3,60 € TTC3,00 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T + USB Type-C affleurante anthracite - S540089
- Réf. 123Elec : SCHS540089
- Réf. Fabricant : S540089
22,90 € TTC19,08 € HT -
Auto
SCHNEIDER Odace Interrupteur va et vient anthracite - S540204
- Réf. 123Elec : SCHS540204
- Réf. Fabricant : S540204
4,20 € TTC3,50 € HT -
Auto
SCHNEIDER Odace Bouton poussoir anthracite - S540206
- Réf. 123Elec : SCHS540206
- Réf. Fabricant : S540206
7,90 € TTC6,58 € HT -
Auto
SCHNEIDER Odace Interrupteur volets roulants anthracite - S540208
- Réf. 123Elec : SCHS540208
- Réf. Fabricant : S540208
18,90 € TTC15,75 € HT -
Auto
SCHNEIDER Odace Interrupteur va et vient à voyant lumineux ou témoin anthracite - S540263
- Réf. 123Elec : SCHS540263
- Réf. Fabricant : S540263
9,95 € TTC8,29 € HT -
SCHNEIDER Odace Prise chargeur double USB TYPE A+C anthracite - S540401
- Réf. 123Elec : SCHS540401
- Réf. Fabricant : S540401
26,80 € TTC22,33 € HT -
Auto
SCHNEIDER Odace Prise TV anthracite - S540445
- Réf. 123Elec : SCHS540445
- Réf. Fabricant : S540445
9,50 € TTC7,92 € HT -
Auto
SCHNEIDER Odace Prise RJ45 grade 1 catégorie 6 anthracite - S540475
- Réf. 123Elec : SCHS540475
- Réf. Fabricant : S540475
13,90 € TTC11,58 € HT -
SCHNEIDER Odace Interrupteur variateur rotatif 100W anthracite - S540519
- Réf. 123Elec : SCHS540519
- Réf. Fabricant : S540519
39,50 € TTC32,92 € HT -
Auto
SCHNEIDER Odace Sortie de câble anthracite - S540662
- Réf. 123Elec : SCHS540662
- Réf. Fabricant : S540662
5,99 € TTC4,99 € HT -
Auto
SCHNEIDER Odace Obturateur anthracite - S540666
- Réf. 123Elec : SCHS540666
- Réf. Fabricant : S540666
5,60 € TTC4,67 € HT
Caractéristiques
Référence fabricant | S540214 |
---|---|
Gencode EAN | 3606480706882 |
Marque | Schneider |
Gamme | Schneider Odace |
Type appareillage | Mécanisme |
Fonction appareillage | Va et vient |
Nombre de touche | 2 |
Couleur | Anthracite |
Matière | Plastique |
Nombre de poste | 1 poste |
Fixation | À vis |
Pose | Encastrée |
Assemblage | À composer |
Bornes automatiques | Oui |
Étanche | Non |
Indice IP - Résistance à l'eau/poussière | IP21 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
