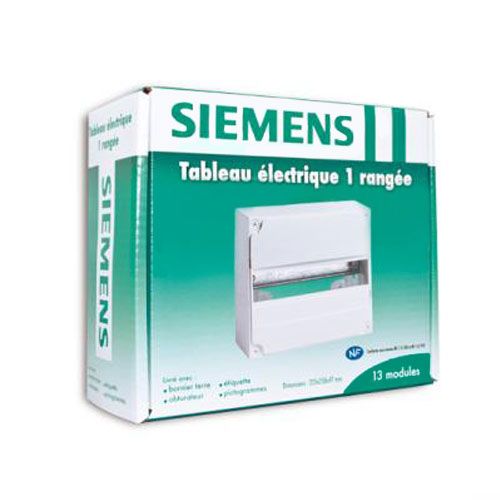

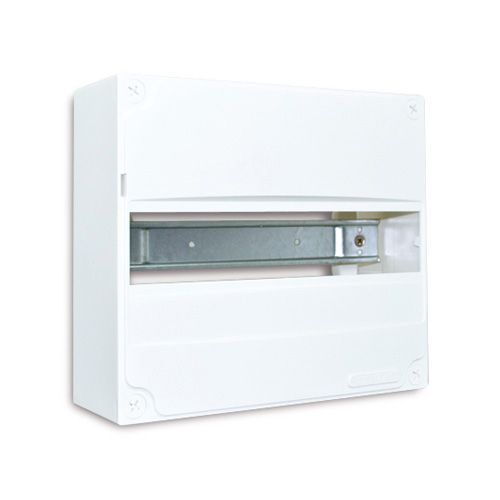

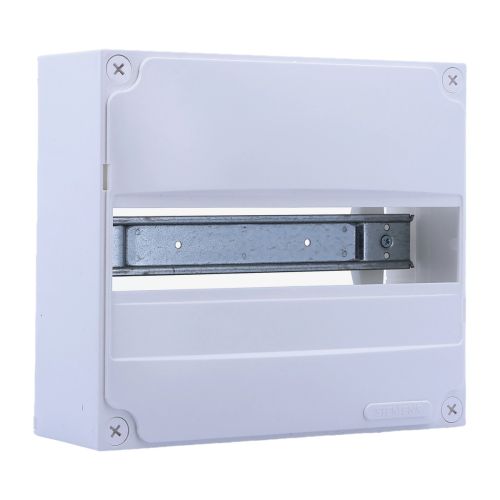

SIEMENS Tableau électrique nu 1 rangée 13 modules
- Réf. 123Elec : SIEAQ761
- Réf. Fabricant : SIE262124
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
SIEMENS Interrupteur différentiel 40A 30mA type AC 230V
- Réf. 123Elec : SIE5SV4314-0KL-F
- Réf. Fabricant : SIE026499
-
SIEMENS Porte transparente pour tableau électrique 1 rangée 13 modules
- Réf. 123Elec : SIEAQ771
- Réf. Fabricant : SIE265491
Présentation
Tableau de répartition Siemens 1 rangée 13 modules
Les tableaux électriques Siemens 1 rangée 13 modules facilitent l'identification des différents circuits électriques grâce à ses planches d'étiquettes. Il répond aux exigences d'installation de la norme NF C 15-100.
- Son indice de protection IK05 lui assure une protection contre les chocs d'origine mécanique de 0,70J.
- Ce coffret électrique peut être équipé de disjoncteurs, interrupteurs différentiels et tous autres accessoires Siemens.
- Il peut se monter en GTL ou en saillie.
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- 1 bornier Terre
- Obturateurs séparables par module ou demi-module
- Planche d'étiquettes pour repérage des appareils modulaires
- Nbre de rangées : 1
- Haut. : 225 mm
- Larg. : 250 mm
- Ep. : 97 mm
- Indice de protection : IP30
- Tenue aux chocs : IK05
- Nombre d'obturateurs : 6.5 modules

Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
SIEMENS Peigne d'alimentation électrique horizontal Phase Neutre 13 modules
- Réf. 123Elec : DIGONE01-F
- Réf. Fabricant : DIG012379
15,50 € TTC12,92 € HT -
EUROHM Interrupteur différentiel 40A 30mA type A 230V - 23340
- Réf. 123Elec : EUR23340
- Réf. Fabricant : 23340
28,99 € TTC24,16 € HT -
LEGRAND Sortie de câble 20/32A avec serre-câble blanc - 031490
- Réf. 123Elec : LEG031490
- Réf. Fabricant : 031490
5,90 € TTC4,92 € HT -
LEGRAND DNX3 Disjoncteur 40A auto PH+N courbe C 6kA 230V - 406887
- Réf. 123Elec : LEG406887
- Réf. Fabricant : 406887
19,60 € TTC16,33 € HT -
4,20 € TTC3,50 € HT
-
SCHNEIDER Acti9 Interrupteur différentiel tête de groupe 1P+N 25A 300mA type AC - A9R77625
- Réf. 123Elec : SCHA9R77625
- Réf. Fabricant : A9R77625
63,95 € TTC53,29 € HT -
SCHNEIDER Resi9 XP Prise modulaire 2P+T 16A 2,5 modules - R9PCS616
- Réf. 123Elec : SCHR9PCS616
- Réf. Fabricant : R9PCS616
7,70 € TTC6,42 € HT -
SCHNEIDER Resi9 XP Disjoncteur 16A Ph+N courbe C 3kA 230V - R9PFC616
- Réf. 123Elec : SCHR9PFC616
- Réf. Fabricant : R9PFC616
9,70 € TTC8,08 € HT -
SCHNEIDER Resi9 XP Disjoncteur 20A Ph+N courbe C 3kA 230V - R9PFC620
- Réf. 123Elec : SCHR9PFC620
- Réf. Fabricant : R9PFC620
9,70 € TTC8,08 € HT -
SCHNEIDER Resi9 XP Peigne d'alimentation électrique horizontal Phase Neutre 13 modules - R9PXH213
- Réf. 123Elec : SCHR9PXH213
- Réf. Fabricant : R9PXH213
6,50 € TTC5,42 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante blanc - S520052
- Réf. 123Elec : SCHS520052
- Réf. Fabricant : S520052
2,95 € TTC2,46 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T anthracite - S540059
- Réf. 123Elec : SCHS540059
- Réf. Fabricant : S540059
3,60 € TTC3,00 € HT -
Auto
SCHNEIDER Odace Interrupteur double va et vient anthracite - S540214
- Réf. 123Elec : SCHS540214
- Réf. Fabricant : S540214
10,90 € TTC9,08 € HT -
SCHNEIDER Odace Styl Plaque simple anthracite - S540702
- Réf. 123Elec : SCHS540702
- Réf. Fabricant : S540702
1,98 € TTC1,65 € HT -
SCHNEIDER Odace Styl Plaque double anthracite - S540704
- Réf. 123Elec : SCHS540704
- Réf. Fabricant : S540704
4,40 € TTC3,67 € HT -
SIEMENS Disjoncteur 10A Ph+N Courbe C 4.5kA 230V - 5SL3010-7KL
- Réf. 123Elec : SIE5SL3010-7KL
- Réf. Fabricant : 5SL3010-7KL
7,20 € TTC6,00 € HT -
SIEMENS Disjoncteur 16A Ph+N Courbe C 4.5kA 230V - 5SL3016-7KL
- Réf. 123Elec : SIE5SL3016-7KL
- Réf. Fabricant : 5SL3016-7KL
7,20 € TTC6,00 € HT -
SIEMENS Disjoncteur 20A Ph+N Courbe C 4.5kA 230V - 5SL3020-7KL
- Réf. 123Elec : SIE5SL3020-7KL
- Réf. Fabricant : 5SL3020-7KL
7,20 € TTC6,00 € HT -
SIEMENS Disjoncteur 32A Ph+N Courbe C 4.5kA 230V - 5SL3032-7KL
- Réf. 123Elec : SIE5SL3032-7KL
- Réf. Fabricant : 5SL3032-7KL
10,50 € TTC8,75 € HT -
SIEMENS Interrupteur différentiel 40A 30mA type AC 230V
- Réf. 123Elec : SIE5SV4314-0KL-F
- Réf. Fabricant : SIE026499
35,90 € TTC29,92 € HT
Caractéristiques
Référence fabricant | SIE262124 |
---|---|
Gencode EAN | 3760162262124 |
Marque | SIEMENS |
Type de tableau | Tableau nu |
Nombre de rangées | 1 |
Nombre de module(s) par rangée | 13 |
Hauteur | 225mm |
Largeur | 250mm |
Type de pose | En saillie |
Étanche | Non |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
