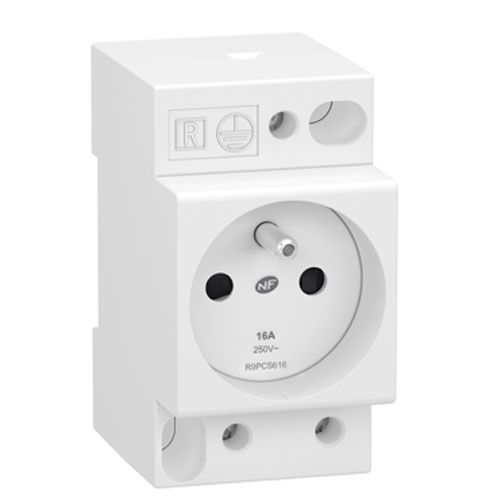

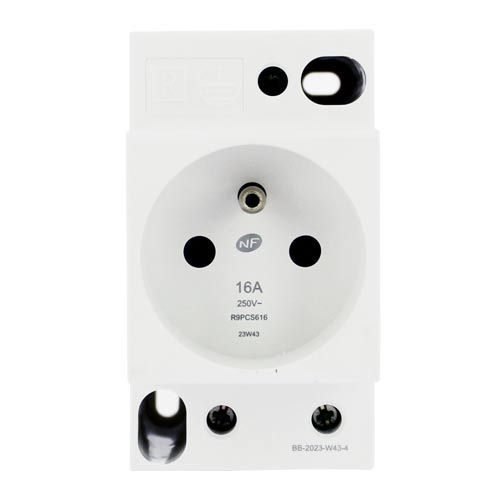

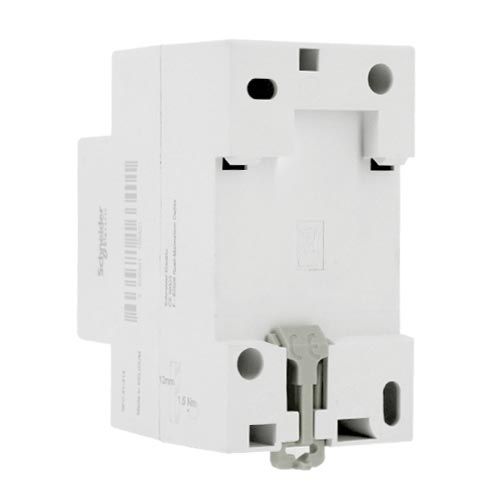

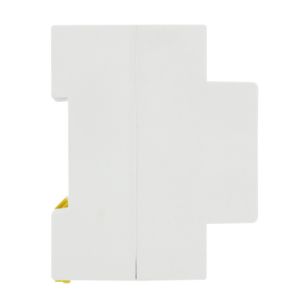

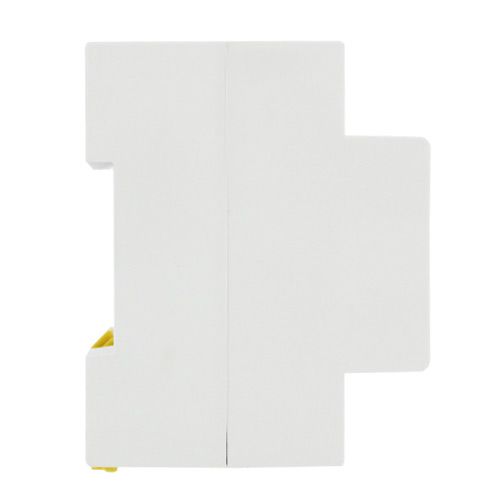

SCHNEIDER Resi9 XP Prise modulaire 2P+T 16A 2,5 modules - R9PCS616
- Réf. 123Elec : SCHR9PCS616
- Réf. Fabricant : R9PCS616
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
Câble électrique R02V 3G2.5² B/M/VJ - Couronne de 50m
- Réf. 123Elec : NEX10027486
- Réf. Fabricant : 10027486
-
SCHNEIDER Resi9 Tableau électrique nu 3 rangées 13 modules - R9H13403
- Réf. 123Elec : SCHR9H13403
- Réf. Fabricant : R9H13403
-
SCHNEIDER Resi9 XP Disjoncteur 16A Ph+N courbe C 3kA 230V - R9PFC616
- Réf. 123Elec : SCHR9PFC616
- Réf. Fabricant : R9PFC616
-
SCHNEIDER Resi9 XP Interrupteur différentiel 63A 30mA type AC 230V - R9PRC263
- Réf. 123Elec : SCHR9PRC263
- Réf. Fabricant : R9PRC263
Présentation
SCHNEIDER Resi9 XP Prise modulaire 2P+T 16A 2,5 modules - R9PCS616

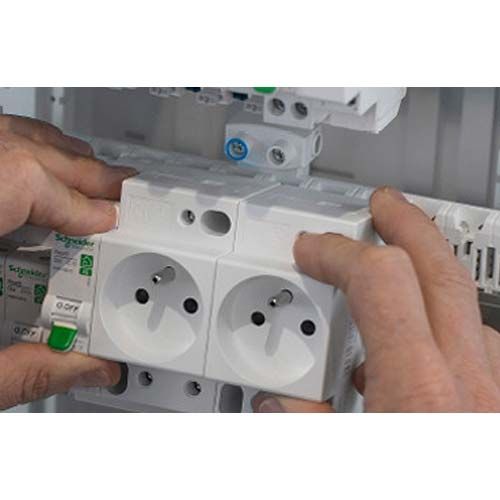

Cette prise modulaire se pose facilement au sein de la gaine technique de logement (GTL) de votre habitation.
- Afin de respecter la norme NF C15-100, une GTL doit disposer au minimum de 2 prises modulaires.
- Elle peut s'installer dans votre coffret électrique sur un rail DIN, comme tous les autres appareillages modulaires Schneider.
Compatible avec les gammes de disjoncteurs et tableaux Schneider Electric hors gamme Resi9 XE
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Type : 2P+T
- In courant assigné d'emploi : 16 A
- Type de réseau : CA
- Fréquence du réseau : 50 Hz
- [Ue] tension assignée d'emploi: 250 V CA 50 Hz
- Mode d'installation : Encliquetable
- Support de montage: Rail DIN
- Pas de 9 mm : 5
- Hauteur : 80,5 mm
- Largeur : 45 mm
- Profondeur : 65,5 mm
- Nombre de modules : 2,5 modules
Avis clients
Moyenne des notes : 5/5 Avis classés du plus récent au plus ancien
-
tres bon produit
-
Produit au top pour remplacer une ancienne prise sur un tableau
-
tres bien
-
Article conforme à mes besoins
-
Parfait correspond à la description, RAS
-
Pour info, cette prise peut parfaitement s'installer dans un tableau Schneider Resi9 XE, il faudra juste câbler les 3 fils sur un disjoncteur dédié.
-
propre et simple
Questions & Réponses
Ces produits peuvent vous intéresser
-
EUROHM XL Air'métic Boite encastrement double étanche à l'air P40 E71 - 52064
- Réf. 123Elec : EUR52064
- Réf. Fabricant : 52064
1,97 € TTC1,64 € HT -
19,90 € TTC16,58 € HT
-
IKEPE Porte blanche pour tableau électrique 2 rangées 13 modules
- Réf. 123Elec : IKE821052
- Réf. Fabricant : PTE2R13MB
12,90 € TTC10,75 € HT -
LEGRAND Plexo Support plaque encastré 2 postes à composer étanche anthracite IP55 - 069607L
- Réf. 123Elec : LEG069607L
- Réf. Fabricant : 069607L
8,90 € TTC7,42 € HT -
LEGRAND Plexo Boite de dérivation étanche IP55 105x105x55 650°C gris - 092022
- Réf. 123Elec : LEG092022
- Réf. Fabricant : 092022
4,10 € TTC3,42 € HT -
Fil électrique rigide H07VR 10mm² bleu - Prix au mètre
- Réf. 123Elec : MIG810001001008207
- Réf. Fabricant : 810001001008207
1,79 € TTC1,49 € HT -
Fil électrique rigide H07VR 10mm² rouge - Prix au mètre
- Réf. 123Elec : MIG810001001009407
- Réf. Fabricant : 810001001009407
1,79 € TTC1,49 € HT -
Fil électrique rigide H07VR 16mm² vert/jaune - Prix au mètre
- Réf. 123Elec : MIG810001001608607
- Réf. Fabricant : 810001001608607
2,70 € TTC2,25 € HT -
SCHNEIDER Multifix Air Boîte encastrement simple étanche à l'air D67 P40 - IMT35001
- Réf. 123Elec : SCHIMT35001
- Réf. Fabricant : IMT35001
0,90 € TTC0,75 € HT -
SCHNEIDER Resi9 XE Interrupteur différentiel 40A 30mA type A auto 230V - R9ERA240
- Réf. 123Elec : SCHR9ERA240
- Réf. Fabricant : R9ERA240
53,95 € TTC44,96 € HT -
SCHNEIDER Resi9 XE Interrupteur différentiel 63A 30mA type A auto 230V - R9ERA263
- Réf. 123Elec : SCHR9ERA263
- Réf. Fabricant : R9ERA263
89,99 € TTC74,99 € HT -
SCHNEIDER Resi9 XE Interrupteur différentiel 40A 30mA type AC auto 230V - R9ERC240
- Réf. 123Elec : SCHR9ERC240
- Réf. Fabricant : R9ERC240
43,50 € TTC36,25 € HT -
SCHNEIDER Resi9 XE Interrupteur différentiel 63A 30mA type AC auto 230V - R9ERC263
- Réf. 123Elec : SCHR9ERC263
- Réf. Fabricant : R9ERC263
77,99 € TTC64,99 € HT -
SCHNEIDER Resi9 XE Peigne vertical 2 rangées entraxe 125mm - R9EXV
- Réf. 123Elec : SCHR9EXV
- Réf. Fabricant : R9EXV
9,95 € TTC8,29 € HT -
SCHNEIDER Resi9 Connect Coffret de communication Grade 2TV - 4RJ45 - R9H13401VDIM
- Réf. 123Elec : SCHR9H13401VDIM
- Réf. Fabricant : R9H13401VDIM
99,00 € TTC82,50 € HT -
SCHNEIDER Resi9 XP Télérupteur 16A 1NO monophasé - R9PCL116
- Réf. 123Elec : SCHR9PCL116
- Réf. Fabricant : R9PCL116
21,70 € TTC18,08 € HT -
SCHNEIDER Resi9 XP Contacteur Jour/Nuit 20A 2NO monophasé - R9PCTH20
- Réf. 123Elec : SCHR9PCTH20
- Réf. Fabricant : R9PCTH20
47,99 € TTC39,99 € HT -
SCHNEIDER Resi9 XP Interrupteur différentiel 40A 30mA type AC 230V - R9PRC240
- Réf. 123Elec : SCHR9PRC240
- Réf. Fabricant : R9PRC240
41,90 € TTC34,92 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T + USB Type-C affleurante blanc - S520089
- Réf. 123Elec : SCHS520089
- Réf. Fabricant : S520089
20,99 € TTC17,49 € HT -
SCHNEIDER Odace Prise chargeur double USB TYPE A+C blanc - S520401
- Réf. 123Elec : SCHS520401
- Réf. Fabricant : S520401
22,50 € TTC18,75 € HT
Caractéristiques
Référence fabricant | R9PCS616 |
---|---|
Gencode EAN | 3606481166401 |
Marque | SCHNEIDER |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
