Présentation

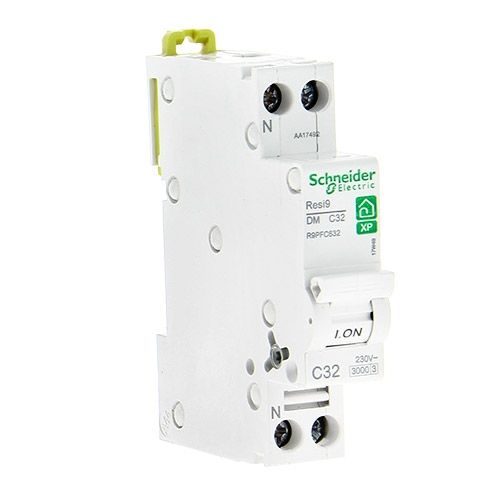

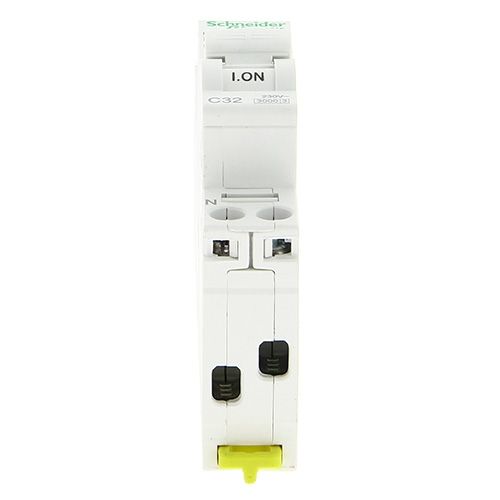

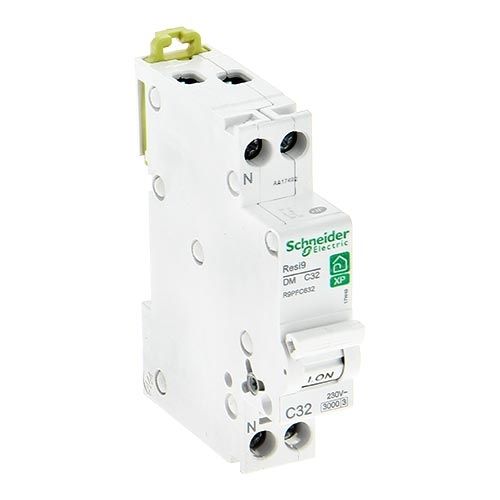

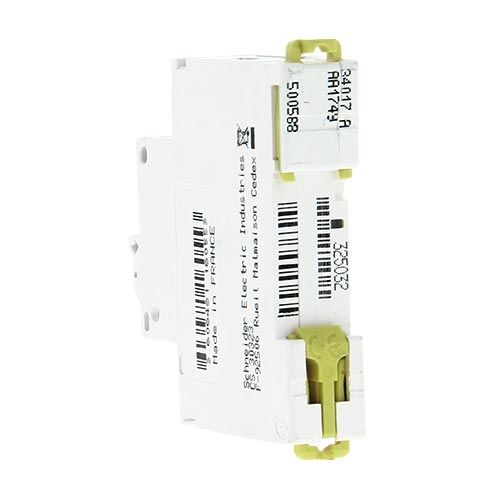

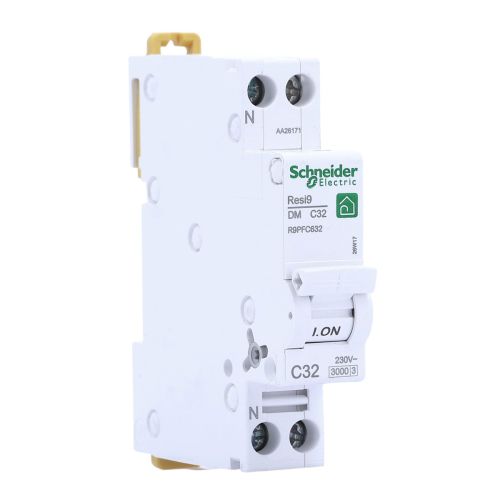

SCHNEIDER Resi9 XP Disjoncteur 32A Ph+N courbe C 3kA 230V - R9PFC632
Ce disjoncteur Resi9 assure notamment la protection des plaques de cuisson ou de la cuisinière.
- Cet appareillage modulaire dispose d'une courbe C, idéal pour les installations électriques domestiques.
- Ce disjoncteur 32A peut s'installer dans un tableau électrique Schneider en se clipsant sur le rail DIN et se raccorde via ses bornes à vis.
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Pouvoir de coupure selon la NF EN 60898 : 3000A
- Courbe de déclenchement : C
- Connexion : à vis
- Nombre de module : 1
- Intensité : 32A
- Nombre de pôles protégés : 1
- Position du pôle neutre : Gauche
- Tension d'alimentation : 230V
- Pas de 9 mm : 2
- Blanc RAL 9003
- Degré de protection IP : IP40, IP20
- Température de fonctionnement : -25...40 °C
- Température ambiante pour le stockage : -40...80 °C
