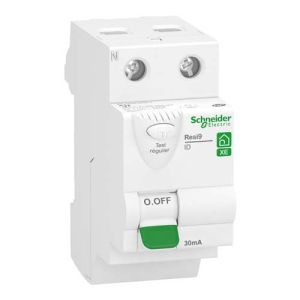

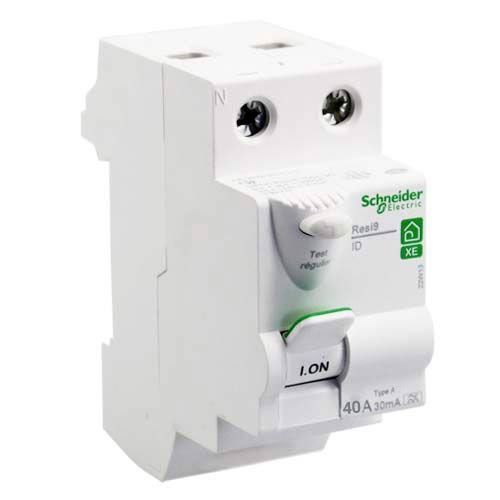

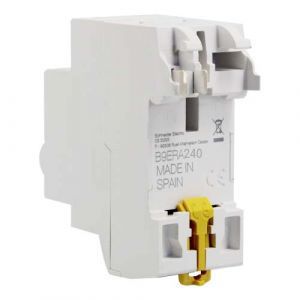

SCHNEIDER Resi9 XE Interrupteur différentiel 40A 30mA type A auto 230V - R9ERA240
- Réf. 123Elec : SCHR9ERA240
- Réf. Fabricant : R9ERA240
- Paiement 100 % sécurisé avec Monetico
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
SCHNEIDER Resi9 XE Répartiteur d'alimentation 13 modules sans connecteur - R9EXHS13
- Réf. 123Elec : SCHR9EXHS13
- Réf. Fabricant : R9EXHS13
-
SCHNEIDER Resi9 XE Répartiteur d'alimentation 13 modules avec connecteur - R9EXHC13
- Réf. 123Elec : SCHR9EXHC13
- Réf. Fabricant : R9EXHC13
-
SCHNEIDER Resi9 XE Disjoncteur 16A auto Ph+N courbe C 3kA 230V - R9EFC616
- Réf. 123Elec : SCHR9EFC616
- Réf. Fabricant : R9EFC616
Présentation
SCHNEIDER Resi9 XE Interrupteur différentiel 40A - 30mA type A 230VCet interrupteur différentiel de type A s'insère rapidement dans votre tableau électrique Schneider.
- Ce différentiel s'utilise pour la protection des plaques de cuisson ou encore de la machine à laver.
- Cet inter diff de la marque Schneider se raccorde aux appareillages modulaires de la même rangée via un répartiteur utilisant le système embrochable XE.
- Bénéficiez d'un gain de place optimal dans votre tableau électrique grâce à cet interrupteur différentiel qui ne fait que 2 modules de large contre 3 modules de large, habituellement.
Uniquement compatible avec la gamme Schneider Resi9 XE
- Norme NF
- Norme CE
- Garantie 2 ans
Descriptif
- Intensité nominale : 40A
- Type : A
- Sensibilité : 30 mA
- Connexion : bornes auto
- Raccordement : arrivée à vis et sortie embrochable par le haut
- Section de fils acceptée : jusqu'à 35 mm²
- Nombre de modules : 2
- Raccordement système XE
- Tension : 230V
- Degré de protection IP : IP20
- Durée de vie électrique : 2000 cycles
- Support de montage: Rail DIN
- Signalisation locale : Indication ON/OFF
Vidéo de présentation des interrupteurs différentiels Schneider :
Caractéristiques e-catalogue Schneider :Schneider Resi9 Réf. R9ERA240Retrouvez l'équipement dont vous avez besoin et équipez rapidement votre habitation avec du matériel électrique Schneider.
Avis clients
Moyenne des notes : 5/5 Avis classés du plus récent au plus ancien
-
tres bon produit de confiance
-
Bon produit
-
Très bon produit rien à dire
-
propre et de qualité
Questions & Réponses
Ces produits peuvent vous intéresser
-
Auto
LEGRAND Mosaic Sortie de câble blanc EU - 277550L
- Réf. 123Elec : LEG277550L
- Réf. Fabricant : 277550L
5,99 € TTC4,99 € HT -
Fil électrique rigide H07VR 16mm² bleu - Prix au mètre
- Réf. 123Elec : MIG810001001608207
- Réf. Fabricant : 810001001608207
2,70 € TTC2,25 € HT -
Fil électrique rigide H07VR 16mm² vert/jaune - Prix au mètre
- Réf. 123Elec : MIG810001001608607
- Réf. Fabricant : 810001001608607
2,70 € TTC2,25 € HT -
Fil électrique rigide H07VR 16mm² rouge - Prix au mètre
- Réf. 123Elec : MIG810001001609407
- Réf. Fabricant : 810001001609407
2,70 € TTC2,25 € HT -
Câble électrique R02V 3G6² B/M/VJ NEXANS - Couronne de 25m
- Réf. 123Elec : NEX10262671
- Réf. Fabricant : 10262671
77,50 € TTC64,58 € HT -
SCHNEIDER Resi9 XE Contacteur Jour / Nuit combiné 20A 2F/NO auto monophasé - R9ECT620
- Réf. 123Elec : SCHR9ECT620
- Réf. Fabricant : R9ECT620
63,50 € TTC52,92 € HT -
SCHNEIDER Resi9 XE Disjoncteur 25A auto Ph+N courbe C 3kA 230V - R9EFC625
- Réf. 123Elec : SCHR9EFC625
- Réf. Fabricant : R9EFC625
14,50 € TTC12,08 € HT -
SCHNEIDER Resi9 XE Interrupteur différentiel 40A 30mA type AC auto 230V - R9ERC240
- Réf. 123Elec : SCHR9ERC240
- Réf. Fabricant : R9ERC240
43,50 € TTC36,25 € HT -
SCHNEIDER Resi9 XE Interrupteur différentiel 63A 30mA type AC auto 230V - R9ERC263
- Réf. 123Elec : SCHR9ERC263
- Réf. Fabricant : R9ERC263
77,99 € TTC64,99 € HT -
SCHNEIDER Resi9 XE Répartiteur d'alimentation 13 modules sans connecteur - R9EXHS13
- Réf. 123Elec : SCHR9EXHS13
- Réf. Fabricant : R9EXHS13
9,50 € TTC7,92 € HT -
SCHNEIDER Resi9 XE Peigne vertical 2 rangées entraxe 125mm - R9EXV
- Réf. 123Elec : SCHR9EXV
- Réf. Fabricant : R9EXV
9,95 € TTC8,29 € HT -
SCHNEIDER Resi9 XP Télérupteur 16A 1NO monophasé - R9PCL116
- Réf. 123Elec : SCHR9PCL116
- Réf. Fabricant : R9PCL116
21,70 € TTC18,08 € HT -
SCHNEIDER Resi9 XP Prise modulaire 2P+T 16A 2,5 modules - R9PCS616
- Réf. 123Elec : SCHR9PCS616
- Réf. Fabricant : R9PCS616
7,70 € TTC6,42 € HT -
SCHNEIDER Resi9 XP Contacteur Jour/Nuit 20A 2NO monophasé - R9PCTH20
- Réf. 123Elec : SCHR9PCTH20
- Réf. Fabricant : R9PCTH20
47,99 € TTC39,99 € HT -
SCHNEIDER Resi9 XP Parafoudre monophasé autoprotégé type 2 10kA 230V - R9PLC
- Réf. 123Elec : SCHR9PLC
- Réf. Fabricant : R9PLC
119,95 € TTC99,96 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante blanc - S520052
- Réf. 123Elec : SCHS520052
- Réf. Fabricant : S520052
2,89 € TTC2,41 € HT -
Auto
SCHNEIDER Odace Prise de courant 2P+T affleurante anthracite - S540052
- Réf. 123Elec : SCHS540052
- Réf. Fabricant : S540052
4,18 € TTC3,48 € HT -
Auto
SCHNEIDER Odace Bouton poussoir anthracite - S540206
- Réf. 123Elec : SCHS540206
- Réf. Fabricant : S540206
7,90 € TTC6,58 € HT -
Auto
SCHNEIDER Odace Interrupteur double va et vient anthracite - S540214
- Réf. 123Elec : SCHS540214
- Réf. Fabricant : S540214
10,90 € TTC9,08 € HT -
Auto
SCHNEIDER Odace Sortie de câble anthracite - S540662
- Réf. 123Elec : SCHS540662
- Réf. Fabricant : S540662
5,99 € TTC4,99 € HT
Caractéristiques
Référence fabricant | R9ERA240 |
---|---|
Gencode EAN | 3606481100252 |
Marque | SCHNEIDER |
Gamme du produit | Schneider Resi9 XE auto |
Fonction du module | Interrupteur différentiel |
Intensité | 40A |
Sensibilité différentiel | 30mA |
Type de différentiel | Type A |
Bornes auto | Non |
Type de connexion | Auto |
Nombre de pôles | Monophasé 1P+N |
Tension | 230V |
Emprise (en nombre de modules) | 2 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Oui |
CE | Oui |
