SCHNEIDER Ovalis Prise TV blanc - S320405
- Réf. 123Elec : SCHS320405
- Réf. Fabricant : S320405
- Paiement 100 % sécurisé
- Large choix de modes de livraison
- Expédition offerte dès 250€ TTC d'achat
À votre écoute au 04 81 12 00 80
ou par email
Produits complémentaires
-
Câble coaxial TV 17 VATC - Couronne de 100m
- Réf. 123Elec : PHN811912
- Réf. Fabricant : A01000190A0004
-
SCHNEIDER Ovalis Prise RJ45 grade 3 catégorie 6 STP blanc - S320476
- Réf. 123Elec : SCHS320476
- Réf. Fabricant : S320476
-
TONNA Répartiteur 4 sorties à connecteurs F - 365041
- Réf. 123Elec : TON365041
- Réf. Fabricant : 365041
4,52 € TTCDEEE inclue
de 0,05 €3,77 € HTDEEE inclue
de 0,04 €
Présentation

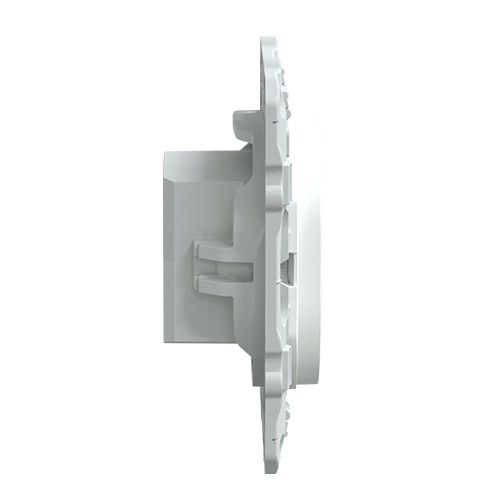

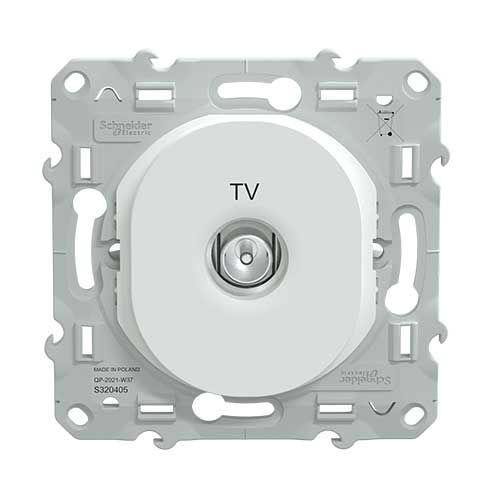

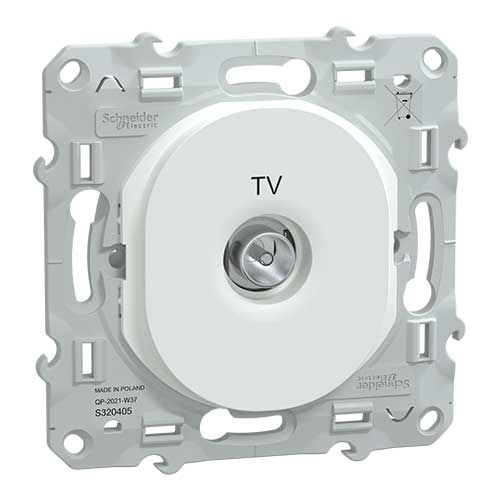

SCHNEIDER Ovalis Prise TV blanc - S320405
Cette prise TV Ovalis sert à relier votre téléviseur à votre antenne TV TNT ou UHD avec une qualité ultra haute définition (réception analogique et numérique).
- Cette prise TV Ovalis de la marque Schneider est un appareillage de qualité et fiable, elle est fabriquée avec des éléments robustes et résistants.
- Élégante et unique de par ses lignes légèrement courbées, cette prise TV Ovalis s'intègrera avec harmonie sur les murs de votre logement.
- La plaque de finition n'est pas fournie avec ce mécanisme TV. Retrouvez les plaques Ovalis Schneider dans notre catalogue 123elec.
Fiche e-catalogue prise TV Schneider
- Norme CE
- Garantie 2 ans
Descriptif
- Gamme de produit : Ovalis
- Type de produit : prise TV
- Type de prise : prise individuelle
- Type d'équipement : mécanisme avec support de fixation
- Montage : pose encastrée
- Couleur : blanc (RAL 9003)
- Capot de protection inclus
- Connecteur TV : mâle CEI 9,52mm
- Affaiblissement sur un trajet : - 1,5 dB TV signal5...1800 MHz - 2,5 dB TV signal1800...2150 MHz
- Protection : - IP : IP21 - Tenue aux chocs : IK04
- Conforme à la norme EN 50083-4
- Matières : - Façade : plastique anti-UV - Boîtier : alliage de zinc - Cadre du support : PBT (polybutylene terephthalate)
- Dimensions du mécanisme : - Hauteur : 71mm - Largeur : 71mm - Profondeur : 34,1mm - Profondeur encastrement : 18,1mm
- Label Green premium 65% de matériau recyclé
- Pilotable à distance via l'application Wiser Home + passerelle Wifi Wiser (non inclus avec le produit !)
- Mode de fixation : par vis (possibilité d'installation par griffes avec la référence SCHS520690)
- Possibilité d'un repiquage
- Raccordement : bornes à vis
- Longueur dénudage des fils : 8mm
- Type de câble : coaxial
- Diamètre extérieur du câble : 7mm


Avis clients
Aucun avis sur ce produit pour le moment
Questions & Réponses
Ces produits peuvent vous intéresser
-
IKEPE Start Compact Coffret de communication Grade 2TV - 8RJ45
- Réf. 123Elec : IKEGA842
- Réf. Fabricant : GA842
94,90 € TTC79,08 € HT -
SCHNEIDER Easy UPS Onduleur 4 prises 1 ph line-interactive 230V 800VA 450W - BVS800I-GR
- Réf. 123Elec : SCHBVS800I-GR
- Réf. Fabricant : BVS800I-GR
97,50 € TTC81,25 € HT -
Offre spéciale
SCHNEIDER Resi9 DB60 Disjoncteur d'abonné monophasé 60A 500mA différentiel instantané - R9FT660
- Réf. 123Elec : SCHR9FT660
- Réf. Fabricant : R9FT660
99,95 € TTC83,29 € HT -
Offre spéciale
SCHNEIDER Resi9 Connect Coffret de communication Grade 3TV - 6RJ45 avec switch POE - R9H13402VDIXS
- Réf. 123Elec : SCHR9H13402VDIXS
- Réf. Fabricant : R9H13402VDIXS
219,90 € TTC183,25 € HT -
Auto
SCHNEIDER Ovalis Prise de courant 2P+T blanc - S320059
- Réf. 123Elec : SCHS320059
- Réf. Fabricant : S320059
2,35 € TTC1,96 € HT -
SCHNEIDER Ovalis Prise de courant 2P+T + USB Type-C affleurante complète blanc - S320089
- Réf. 123Elec : SCHS320089
- Réf. Fabricant : S320089
12,30 € TTC10,25 € HT -
Auto
SCHNEIDER Ovalis Bouton poussoir blanc - S320206
- Réf. 123Elec : SCHS320206
- Réf. Fabricant : S320206
4,99 € TTC4,16 € HT -
SCHNEIDER Ovalis Prise RJ45 grade 3 catégorie 6 STP blanc - S320476
- Réf. 123Elec : SCHS320476
- Réf. Fabricant : S320476
9,95 € TTC8,29 € HT -
2,99 € TTC2,49 € HT
-
0,95 € TTC0,79 € HT
-
SCHNEIDER Ovalis Plaque double horizontale blanc - S320704
- Réf. 123Elec : SCHS320704
- Réf. Fabricant : S320704
1,90 € TTC1,58 € HT -
SCHNEIDER Ovalis Plaque triple horizontale blanc - S320706
- Réf. 123Elec : SCHS320706
- Réf. Fabricant : S320706
2,99 € TTC2,49 € HT -
SCHNEIDER Ovalis Plaque double verticale blanc - S320724
- Réf. 123Elec : SCHS320724
- Réf. Fabricant : S320724
2,00 € TTC1,67 € HT -
Auto
SCHNEIDER Ovalis Prise de courant 2P+T affleurante anthracite - S340052
- Réf. 123Elec : SCHS340052
- Réf. Fabricant : S340052
3,85 € TTC3,21 € HT -
Auto
SCHNEIDER Ovalis Interrupteur va et vient anthracite - S340204
- Réf. 123Elec : SCHS340204
- Réf. Fabricant : S340204
3,70 € TTC3,08 € HT -
Auto
SCHNEIDER Ovalis Interrupteur double va et vient anthracite - S340214
- Réf. 123Elec : SCHS340214
- Réf. Fabricant : S340214
9,35 € TTC7,79 € HT -
SCHNEIDER Ovalis Prise RJ45 grade 3 catégorie 6 anthracite - S340476
- Réf. 123Elec : SCHS340476
- Réf. Fabricant : S340476
15,40 € TTC12,83 € HT -
SCHNEIDER Ovalis Plaque simple anthracite - S340702
- Réf. 123Elec : SCHS340702
- Réf. Fabricant : S340702
1,45 € TTC1,21 € HT -
SCHNEIDER Ovalis Plaque double anthracite - S340704
- Réf. 123Elec : SCHS340704
- Réf. Fabricant : S340704
2,80 € TTC2,33 € HT -
SCHNEIDER Ovalis Plaque triple anthracite - S340706
- Réf. 123Elec : SCHS340706
- Réf. Fabricant : S340706
4,25 € TTC3,54 € HT
Caractéristiques
Référence fabricant | S320405 |
---|---|
Gencode EAN | 3606482162778 |
Gamme du produit | Schneider Ovalis |
Marque | Schneider |
Type appareillage | Mécanisme |
Fonction appareillage | Prise TV |
Couleur | Blanc |
Matière | Plastique |
Nombre de poste | 1 poste |
Fixation | À vis |
Pose | Encastrée |
Assemblage | À composer |
Bornes automatiques | Non |
Étanche | Non |
Indice IP - Résistance à l'eau/poussière | IP21 |
Garantie | 2 ans |
Fabrication française | Non |
Label OFG (Origine France Garantie) | Non |
NF | Non |
CE | Oui |
